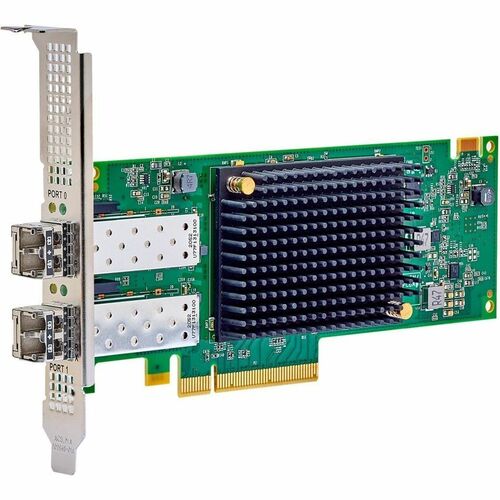

4XC7A96458 Lenovo ThinkSystem Emulex LPe38102 64Gb 2-port SecureHBA PCIe Fibre Channel Adapter

The Lenovo ThinkSystem Emulex® SecureHBA Fibre Channel Adapters by Broadcom are designed to deliver the highest level of security, performance, and manageability for mission-critical infrastructures.

This product guide describes the Emulex FC HBAs and provides essential pre-sales information to understand the products, their key features and specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the adapters and consider their use in IT solutions.

• General Information

  ---

  Manufacturer: Lenovo Group Limited
  Manufacturer Part Number: 4XC7A96458
  Manufacturer Website Address: http://www.lenovo.com/us/en/
  Brand Name: Lenovo
  Product Model: LPe38102
  Product Name: ThinkSystem Emulex LPe38102 64Gb 2-port SecureHBA PCIe Fibre Channel Adapter
  Marketing Information:

  The Lenovo ThinkSystem Emulex® SecureHBA Fibre Channel Adapters by Broadcom are designed to deliver the highest level of security, performance, and manageability for mission-critical infrastructures.

  This product guide describes the Emulex FC HBAs and provides essential pre-sales information to understand the products, their key features and specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the adapters and consider their use in IT solutions.


  Product Type: PCIe Host Bus Adapter

  Technical Information

  ---

  Total Number of Fibre Channel Ports: 2
  Host Interface: PCI Express 4.0 x8
  Fiber Channel Port Type: N_Port
  Features: UEFI Support

  Media & Performance

  ---

  Media Type Supported: Optical Fiber
  Fiber Optic Cable Core/Cladding Specification: 50/125 µm
  Fiber Mode Supported: Multi-mode
  Data Transfer Rate: 64 Gbit/s

  I/O Expansions

  ---

  Total Number of Expansion Slots: 2
  Expansion Slot Type: SFP+

  Physical Characteristics

  ---

  Form Factor: Plug-in Card
  Height: 2.7"
  Depth: 6.6"

  Miscellaneous

  ---

  Package Contents:

  • ThinkSystem Emulex LPe38102 64Gb 2-port SecureHBA PCIe Fibre Channel Adapter
  • 3U (full-height) bracket attached and 2U (low-profile) bracket
  • Publications Flyer


  Compatibility:

  Lenovo ThinkSystem SR860 V4 Servers

  • SR630 V4 (7DG8 / 7DG9)
  • SR650 V4 (7DGC / 7DGD)
  • SR650a V4 (7DGC / 7DGD)
  • SR850 V4 (7DJT / 7DJS)
  • SR860 V4 (7DJQ / 7DJN)


  Environmental Compliance:
• Restriction of Hazardous Substances (RoHS)
• China Restriction of Hazardous Substances (China RoHS)

Warranty

---

Limited Warranty: 1 Year
Additional Warranty Information:

The adapters carry a one-year limited warranty. When installed in a supported server, the adapters assume the server's base warranty and any Lenovo Services warranty upgrade.
