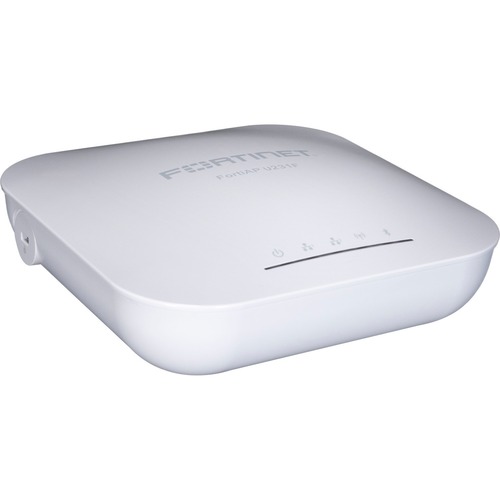

FAP-U231F-A Fortinet FortiAP U231F Dual Band 802.11ax 2.91 Gbit/s Wireless Access Point - Indoor

This enterprise class Wi-Fi 6 (802.11ax) indoor AP provides three radios as well as features such as OFDMA and dual 1 Gbps Ethernet ports for PoE diversity. The APs can be configured for dual 5 GHz band access while still providing coverage for devices on the 2.4 GHz band, or can be configured to offer dedicated scanning. The integrated BLE radio can be used for beacons and locationing applications.

• General Information

  ---

  Manufacturer: Fortinet, Inc
  Manufacturer Part Number: FAP-U231F-A
  Manufacturer Website Address: http://www.fortinet.com
  Brand Name: Fortinet
  Product Line: FortiAP
  Product Model: U231F
  Product Name: FortiAP U231F Wireless Access Point
  Marketing Information: This enterprise class Wi-Fi 6 (802.11ax) indoor AP provides three radios as well as features such as OFDMA and dual 1 Gbps Ethernet ports for PoE diversity. The APs can be configured for dual 5 GHz band access while still providing coverage for devices on the 2.4 GHz band, or can be configured to offer dedicated scanning. The integrated BLE radio can be used for beacons and locationing applications.
  Product Type: Wireless Access Point

  Technical Information

  ---

  Wireless LAN Standard: 802.11ax
  Network Band: Dual Band
  Frequency Band:
• 2.40 GHz
• 5 GHz
Total Number of Antennas: 5
Number of Internal Antennas: 5
Indoor/Outdoor: Indoor
Wireless Transmission Speed: 2.91 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Data Encryption: Yes
Encryption Standard:
• WPA
• WPA2
• WPA3
• WEP
• WPA-PSK
• WPA2-PSK
• WPA3-PSK

Interfaces/Ports

---

Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 2
PoE (RJ-45) Port: Yes
PoE PD Port: Yes
USB: Yes
Management Port: Yes

Power Description

---

Power Consumption: 18.50 W

Physical Characteristics

---

Form Factor:

Wall Mountable

Ceiling Mountable

T-bar Mount

Antenna Form Factor: Internal
Height: 2"
Width: 6.5"
Depth: 6.5"
Weight (Approximate): 1.50 lb

Miscellaneous

---

Package Contents:

• FortiAP U231F Wireless Access Point
• Ceiling/Wall Mount Kit

Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: Taiwan

Warranty

---

Limited Warranty: Lifetime
