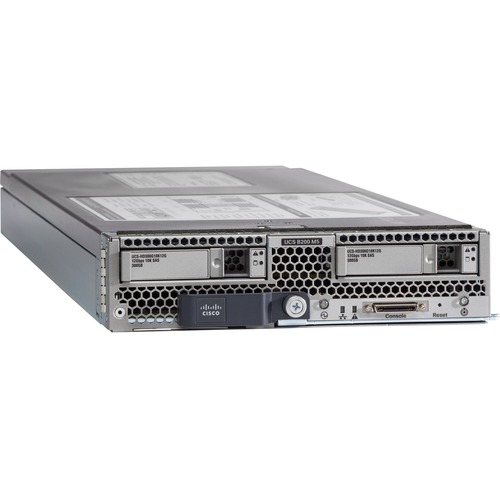

Delivering performance, versatility and density without compromise, the Cisco UCS B200 M5 Blade Server addresses the broadest set of workloads, from IT and web infrastructure through distributed database.
The enterprise-class Cisco UCS B200 M5 blade server extends the capabilities of Cisco's Unified Computing System portfolio in a half-width blade form factor. The Cisco UCS B200 M5 harnesses the power of the latest Intel® Xeon® processor scalable family CPUs with up to 3072 GB of RAM (using 128 GB DIMMs), two solid-state drives (SSDs) or hard disk drives (HDDs), and up to 80 Gbps throughput connectivity.
The May 2019 update includes support for the following:
- 2nd Generation Intel® Xeon® Scalable Processors.
- 2933-MHz DDR4 memory DIMMs.
- 128 GB, 256 GB, 512 GB Intel® Persistent Memory Modules (PMEM).
- Up to 9 TB of memory is available if the memory slots are populated as follows:
- 12 x 256 GB DDR4 DIMMs
- 12 x 512 GB PMEMs
-
General Information
Manufacturer: Cisco Systems, Inc Manufacturer Part Number: UCSB-B200M5-RSV1B Manufacturer Website Address: http://www.cisco.com Brand Name: Cisco Product Series: B200 M5 Product Model: UCSB-B200M5-RSV1B Product Name: UCSB-B200M5-RSV1B Server Marketing Information: Delivering performance, versatility and density without compromise, the Cisco UCS B200 M5 Blade Server addresses the broadest set of workloads, from IT and web infrastructure through distributed database. The enterprise-class Cisco UCS B200 M5 blade server extends the capabilities of Cisco's Unified Computing System portfolio in a half-width blade form factor. The Cisco UCS B200 M5 harnesses the power of the latest Intel® Xeon® processor scalable family CPUs with up to 3072 GB of RAM (using 128 GB DIMMs), two solid-state drives (SSDs) or hard disk drives (HDDs), and up to 80 Gbps throughput connectivity. The May 2019 update includes support for the following: - 2nd Generation Intel® Xeon® Scalable Processors.
- 2933-MHz DDR4 memory DIMMs.
- 128 GB, 256 GB, 512 GB Intel® Persistent Memory Modules (PMEM).
- Up to 9 TB of memory is available if the memory slots are populated as follows:
- 12 x 256 GB DDR4 DIMMs
- 12 x 512 GB PMEMs
Packaged Quantity: 1 Product Type: Server Processor
Number of Processors Supported: 2
Number of Processors Installed: 2
Processor Type: Xeon
Processor Generation: 2nd Gen
Processor Model: 6226R
Processor Core: Hexadeca-core (16 Core)
Processor Speed: 2.80 GHz
Chipset
Chipset Manufacturer: Intel
Chipset Model: C621
Memory
Standard Memory: 64 GB
Maximum Memory Supported: 9 TB
Memory Technology: DDR4 SDRAM
Memory Clock Speed: 2.93 GHz
Total Number of Memory Slots: 24
Number of Occupied Memory Slots: 12
Error Checking: ECC
Storage
Number of Solid State Drives: 1
Total Solid State Drive Capacity: 240 GB
Solid State Drive Interface: M.2
Solid State Drive Configuration: 1 x 240GB
Controllers
Controller Type: 12Gb/s SAS
RAID Supported: Yes
Display & Graphics
Graphics Memory Capacity: 16 MB
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Interfaces/Ports
Network (RJ-45): Yes
Operating System
Operating System Supported: - Windows Server 2019 Standard
- Windows Server 2019 Datacenter
- Red Hat Enterprise Linux
- SuSE Linux Enterprise Server
Physical Characteristics
Form Factor: Blade
Height: 2"
Width: 8"
Depth: 24.4"
Warranty
Limited Warranty: 3 Year
 Dedicated account managers are available to assist you with purchasing and presales questions at 877-712-2230 Monday through Friday 8-5pm. What Forms Of Payment Do We Take?We accept all forms of payment including Visa, Mastercard, American Express, Discover, Wire Transfer, and Check in Advance. Purchase orders are accepted and net terms are given based on a credit check. Why Buy From ITO?ITO Solutions, Inc. purpose is to provide you, our client, with best in class technology solutions to help you run your network efficiently by leveraging our integrity, partnerships, and years of experience within the IT industry. Our account managers are here to answer your questions and provide you with solutions very effectively.
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Key Features
Product Description
Delivering performance, versatility and density without compromise, the Cisco UCS B200 M5 Blade Server addresses the broadest set of workloads, from IT and web infrastructure through distributed database.
The enterprise-class Cisco UCS B200 M5 blade server extends the capabilities of Cisco's Unified Computing System portfolio in a half-width blade form factor. The Cisco UCS B200 M5 harnesses the power of the latest Intel® Xeon® processor scalable family CPUs with up to 3072 GB of RAM (using 128 GB DIMMs), two solid-state drives (SSDs) or hard disk drives (HDDs), and up to 80 Gbps throughput connectivity.
The May 2019 update includes support for the following:
- 2nd Generation Intel® Xeon® Scalable Processors.
- 2933-MHz DDR4 memory DIMMs.
- 128 GB, 256 GB, 512 GB Intel® Persistent Memory Modules (PMEM).
- Up to 9 TB of memory is available if the memory slots are populated as follows:
- 12 x 256 GB DDR4 DIMMs
- 12 x 512 GB PMEMs
- Number of Processors Supported: 2
- Number of Processors Installed: 2
- Processor Type: Xeon
- Processor Generation: 2nd Gen
- Processor Model: 6226R
- Processor Core: Hexadeca-core (16 Core)
- Processor Speed: 2.80 GHz
- Chipset Manufacturer: Intel
- Chipset Model: C621
- Standard Memory: 64 GB
- Maximum Memory Supported: 9 TB
- Memory Technology: DDR4 SDRAM
- Memory Clock Speed: 2.93 GHz
- Total Number of Memory Slots: 24
- Number of Occupied Memory Slots: 12
- Error Checking: ECC
- Number of Solid State Drives: 1
- Total Solid State Drive Capacity: 240 GB
- Solid State Drive Interface: M.2
- Solid State Drive Configuration: 1 x 240GB
- Controller Type: 12Gb/s SAS
- RAID Supported: Yes
- Graphics Memory Capacity: 16 MB
- Ethernet Technology: 10 Gigabit Ethernet
- Network (RJ-45): Yes
- Operating System Supported: Windows Server 2019 Standard, Windows Server 2019 Datacenter, Red Hat Enterprise Linux, SuSE Linux Enterprise Server
- Form Factor: Blade
- Height: 2"
- Width: 8"
- Depth: 24.4"
- Limited Warranty: 3 Year
|
|
|
|
|
|
|
