- Supports resolutions up to 1080p (HDTV) or 1920 x 1200 (VESA).
- Enables flexible screen location without compromising video quality.
- HDCP compliant and Blu-ray ready, and supports EDID.
- Transmits serial RS-232 TXD and RXD control signals.

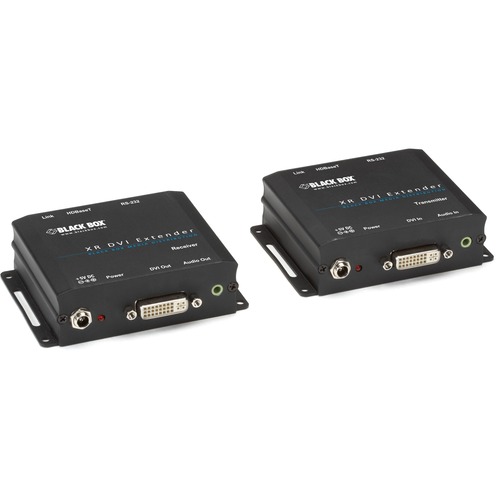

- Includes a transmitter and a wallmountable receiver.
- Auto equalization for extended video range.
- No software or driver installation required.
- Complies with the DVI 1.0 standard.
Put a digital DVI screen up to 330 feet (100 m) from a video source and control a monitor via RS-232 TXD and RXD control signals with this extender.
Extending over a single CAT5e/6/7 cable, the transmitter-receiver combo supports both HDTV resolutions and VESA standards. The extender makes it easy to send digital 1080p-quality video and 2-channel stereo analog audio plus serial RS-232 control signals to a distant screen or projector.
Audio is integrated into the CATx cable extension, so you don't need a separate cable to transmit audio from the source to the screen.
Because the extender supports bidirectional RS-232 control, you can use serial commands from a PC to control RS-232 equipment or turn a remote screen on and off to save energy in your video application.
Plus, the XR DVI-D Extender with Audio, RS-232, and HDCP supports EDID and HDCP bypass, so you can also extend content from a protected-content source.
*Distance depends on the characteristics and quality of the cable and the type of DVI source and display.
-
General Information
Manufacturer: Black Box Corporation Manufacturer Part Number: AVX-DVI-TP-100M Manufacturer Website Address: http://www.blackbox.com Brand Name: Black Box Product Name: XR DVI-D Extender with Audio RS-232 and HDCP Marketing Information: - Supports resolutions up to 1080p (HDTV) or 1920 x 1200 (VESA).
- Enables flexible screen location without compromising video quality.
- HDCP compliant and Blu-ray ready, and supports EDID.
- Transmits serial RS-232 TXD and RXD control signals.
- Includes a transmitter and a wallmountable receiver.
- Auto equalization for extended video range.
- No software or driver installation required.
- Complies with the DVI 1.0 standard.
Put a digital DVI screen up to 330 feet (100 m) from a video source and control a monitor via RS-232 TXD and RXD control signals with this extender.
Extending over a single CAT5e/6/7 cable, the transmitter-receiver combo supports both HDTV resolutions and VESA standards. The extender makes it easy to send digital 1080p-quality video and 2-channel stereo analog audio plus serial RS-232 control signals to a distant screen or projector.
Audio is integrated into the CATx cable extension, so you don't need a separate cable to transmit audio from the source to the screen.
Because the extender supports bidirectional RS-232 control, you can use serial commands from a PC to control RS-232 equipment or turn a remote screen on and off to save energy in your video application.
Plus, the XR DVI-D Extender with Audio, RS-232, and HDCP supports EDID and HDCP bypass, so you can also extend content from a protected-content source.
*Distance depends on the characteristics and quality of the cable and the type of DVI source and display. Product Condition: New Product Type: KVM Extender Technical Information
Connectivity Technology: Wired
Number of Computers Supported: 1
Number of Local Users Supported: 1
Maximum Operating Distance: 330 ft
Device Type: KVM Extender
Video
Maximum Video Resolution: 1920 x 1200
Interfaces/Ports
Network (RJ-45): Yes
DVI: Yes
Number of Network (RJ-45) Ports: 2
Number of DVI Ports: 2
Power Description
Input Voltage: - 120 V AC
- 240 V AC
Input Voltage Range: 100V AC to 240V AC
Power Consumption: 20 W
Physical Characteristics
Form Factor: Wall Mountable
Transmitter Height: 1.30"
Transmitter Width: 4.10"
Transmitter Depth: 3"
Receiver Height: 1.30"
Receiver Width: 4.10"
Receiver Depth: 3"
Transmitter Weight (Approximate): 14.40 oz
Receiver Weight (Approximate): 14.40 oz
Miscellaneous
Package Contents: - Transmitter
- Receiver
- 2 x Power Supplies with Cords
- 2 x Wallmount Brackets
- 4 x Screws
- User Manual
Environmentally Friendly: Yes Country of Origin: Taiwan TAA Compliant: Yes Warranty
Limited Warranty: 3 Year
 Dedicated account managers are available to assist you with purchasing and presales questions at 877-712-2230 Monday through Friday 8-5pm. What Forms Of Payment Do We Take?We accept all forms of payment including Visa, Mastercard, American Express, Discover, Wire Transfer, and Check in Advance. Purchase orders are accepted and net terms are given based on a credit check. Why Buy From ITO?ITO Solutions, Inc. purpose is to provide you, our client, with best in class technology solutions to help you run your network efficiently by leveraging our integrity, partnerships, and years of experience within the IT industry. Our account managers are here to answer your questions and provide you with solutions very effectively.
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Key Features
Product Description
- Supports resolutions up to 1080p (HDTV) or 1920 x 1200 (VESA).
- Enables flexible screen location without compromising video quality.
- HDCP compliant and Blu-ray ready, and supports EDID.
- Transmits serial RS-232 TXD and RXD control signals.
- Includes a transmitter and a wallmountable receiver.
- Auto equalization for extended video range.
- No software or driver installation required.
- Complies with the DVI 1.0 standard.
Put a digital DVI screen up to 330 feet (100 m) from a video source and control a monitor via RS-232 TXD and RXD control signals with this extender.
Extending over a single CAT5e/6/7 cable, the transmitter-receiver combo supports both HDTV resolutions and VESA standards. The extender makes it easy to send digital 1080p-quality video and 2-channel stereo analog audio plus serial RS-232 control signals to a distant screen or projector.
Audio is integrated into the CATx cable extension, so you don't need a separate cable to transmit audio from the source to the screen.
Because the extender supports bidirectional RS-232 control, you can use serial commands from a PC to control RS-232 equipment or turn a remote screen on and off to save energy in your video application.
Plus, the XR DVI-D Extender with Audio, RS-232, and HDCP supports EDID and HDCP bypass, so you can also extend content from a protected-content source.
*Distance depends on the characteristics and quality of the cable and the type of DVI source and display.
- Connectivity Technology: Wired
- Number of Computers Supported: 1
- Number of Local Users Supported: 1
- Maximum Operating Distance: 330 ft
- Device Type: KVM Extender
- Maximum Video Resolution: 1920 x 1200
- Network (RJ-45): Yes
- DVI: Yes
- Number of Network (RJ-45) Ports: 2
- Number of DVI Ports: 2
- Input Voltage: 120 V AC, 240 V AC
- Input Voltage Range: 100V AC to 240V AC
- Power Consumption: 20 W
- Form Factor: Wall Mountable
- Transmitter Height: 1.30"
- Transmitter Width: 4.10"
- Transmitter Depth: 3"
- Receiver Height: 1.30"
- Receiver Width: 4.10"
- Receiver Depth: 3"
- Transmitter Weight (Approximate): 14.40 oz
- Receiver Weight (Approximate): 14.40 oz
- Package Contents:
Transmitter, Receiver, 2 x Power Supplies with Cords, 2 x Wallmount Brackets , 4 x Screws, User Manual, - Environmentally Friendly: Yes
- Country of Origin: Taiwan
- TAA Compliant: Yes
- Limited Warranty: 3 Year
|
|
|
|
|
|
|
