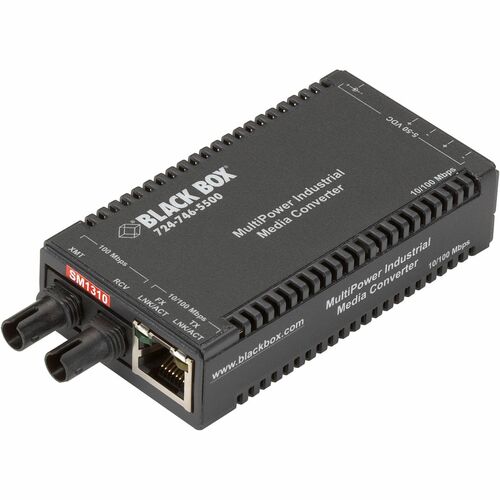

Hardened and Rugged These ultra-compact, plug-and-play converters support USB power using an optional USB power cable (part number LHC021A). Plus, Industrial MultiPower Media Converters are designed for use in harsh industrial environments. Versatile Power Options For added flexibility, the Industrial MultiPower Media Converter can be powered via an external AC adapter or 5-50-VDC terminal block power. Alternately, an optional USB Power Adapter Cable (sold separately, part number LHC021A) allows you to power the unit through the PC's USB port. Maximum Redundancy Multiple power options can be used simultaneously for maximum redundancy, ensuring continuous operation of mission-critical applications. If one source fails, the others will seamlessly keep the converter powered, so you can use AC and DC power together or USB and DC power together. AC and USB use the same power connection on the device and can never be used at the same time. Link Fault Pass-Through (LFPT) Support LFPT functionality can be enabled or disabled via a DIP switch on the unit. This feature combines TX LinkLoss (for twisted pair/copper interfaces) and FX LinkLoss (for fiber interfaces) between paired media converters. When enabled, LFPT passes a link fault through the device at each segment. If a link fails on one interface, the media converter will bring down the link on its partner and pass the fault to the next interface. Disabling LFPT helps when troubleshooting by not propagating the fault through the unit so the area where the issue resides can be determined. Easy DIN Rail Installation The converter includes a DIN-rail clip for easy attachment to a DIN rail. When installing multiple Industrial MultiPower Media Converters, use a single DC input source and cascade from one DC block to the next, up to the maximum available current.
-
General Information
Manufacturer: Black Box Corporation Manufacturer Part Number: LIC024A-R4 Manufacturer Website Address: http://www.blackbox.com Brand Name: Black Box Product Line: Multipower Miniature Product Name: MultiPower Miniature Transceiver/Media Converter Marketing Information: Hardened and Rugged These ultra-compact, plug-and-play converters support USB power using an optional USB power cable (part number LHC021A). Plus, Industrial MultiPower Media Converters are designed for use in harsh industrial environments. Versatile Power Options For added flexibility, the Industrial MultiPower Media Converter can be powered via an external AC adapter or 5-50-VDC terminal block power. Alternately, an optional USB Power Adapter Cable (sold separately, part number LHC021A) allows you to power the unit through the PC's USB port. Maximum Redundancy Multiple power options can be used simultaneously for maximum redundancy, ensuring continuous operation of mission-critical applications. If one source fails, the others will seamlessly keep the converter powered, so you can use AC and DC power together or USB and DC power together. AC and USB use the same power connection on the device and can never be used at the same time. Link Fault Pass-Through (LFPT) Support LFPT functionality can be enabled or disabled via a DIP switch on the unit. This feature combines TX LinkLoss (for twisted pair/copper interfaces) and FX LinkLoss (for fiber interfaces) between paired media converters. When enabled, LFPT passes a link fault through the device at each segment. If a link fails on one interface, the media converter will bring down the link on its partner and pass the fault to the next interface. Disabling LFPT helps when troubleshooting by not propagating the fault through the unit so the area where the issue resides can be determined. Easy DIN Rail Installation The converter includes a DIN-rail clip for easy attachment to a DIN rail. When installing multiple Industrial MultiPower Media Converters, use a single DC input source and cascade from one DC block to the next, up to the maximum available current. Product Type: Transceiver/Media Converter Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
USB: Yes
Number of PoE (RJ-45) Ports: 1
PoE Port Type: PD
Number of Network (RJ-45) Ports: 1
Number of ST Ports: 1
Media & Performance
Media Type Supported: - Twisted Pair
- Optical Fiber
Fiber Mode Supported: Single-mode
Fiber Optic Cable Wavelength: 1310 nm
Maximum Distance Supported: 40 km
Network & Communication
Ethernet Technology: Fast Ethernet
Network Technology: - 100Base-T
- 10/100Base-X
Power Description
Power Source: AC/DC
Physical Characteristics
Form Factor: - DIN Rail Mountable
- Standalone
Height: 0.8"
Width: 1.8"
Depth: 85.1"
Weight (Approximate): 11.20 oz
Miscellaneous
Package Contents: - MultiPower Miniature Transceiver/Media Converter
- External 100-240-VAC, 50-60-Hz Adapter
- DIN Clip
Environmental Compliance: - Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant: Yes Warranty
Limited Warranty: 1 Year
 Dedicated account managers are available to assist you with purchasing and presales questions at 877-712-2230 Monday through Friday 8-5pm. What Forms Of Payment Do We Take?We accept all forms of payment including Visa, Mastercard, American Express, Discover, Wire Transfer, and Check in Advance. Purchase orders are accepted and net terms are given based on a credit check. Why Buy From ITO?ITO Solutions, Inc. purpose is to provide you, our client, with best in class technology solutions to help you run your network efficiently by leveraging our integrity, partnerships, and years of experience within the IT industry. Our account managers are here to answer your questions and provide you with solutions very effectively.
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Key Features
Product Description
Hardened and Rugged These ultra-compact, plug-and-play converters support USB power using an optional USB power cable (part number LHC021A). Plus, Industrial MultiPower Media Converters are designed for use in harsh industrial environments. Versatile Power Options For added flexibility, the Industrial MultiPower Media Converter can be powered via an external AC adapter or 5-50-VDC terminal block power. Alternately, an optional USB Power Adapter Cable (sold separately, part number LHC021A) allows you to power the unit through the PC's USB port. Maximum Redundancy Multiple power options can be used simultaneously for maximum redundancy, ensuring continuous operation of mission-critical applications. If one source fails, the others will seamlessly keep the converter powered, so you can use AC and DC power together or USB and DC power together. AC and USB use the same power connection on the device and can never be used at the same time. Link Fault Pass-Through (LFPT) Support LFPT functionality can be enabled or disabled via a DIP switch on the unit. This feature combines TX LinkLoss (for twisted pair/copper interfaces) and FX LinkLoss (for fiber interfaces) between paired media converters. When enabled, LFPT passes a link fault through the device at each segment. If a link fails on one interface, the media converter will bring down the link on its partner and pass the fault to the next interface. Disabling LFPT helps when troubleshooting by not propagating the fault through the unit so the area where the issue resides can be determined. Easy DIN Rail Installation The converter includes a DIN-rail clip for easy attachment to a DIN rail. When installing multiple Industrial MultiPower Media Converters, use a single DC input source and cascade from one DC block to the next, up to the maximum available current.
- Total Number of Ports: 2
- Network (RJ-45): Yes
- USB: Yes
- Number of PoE (RJ-45) Ports: 1
- PoE Port Type: PD
- Number of Network (RJ-45) Ports: 1
- Number of ST Ports: 1
- Media Type Supported: Twisted Pair, Optical Fiber
- Fiber Mode Supported: Single-mode
- Fiber Optic Cable Wavelength: 1310 nm
- Maximum Distance Supported: 40 km
- Ethernet Technology: Fast Ethernet
- Network Technology: 100Base-T, 10/100Base-X
- Power Source: AC/DC
- Form Factor: DIN Rail Mountable, Standalone
- Height: 0.8"
- Width: 1.8"
- Depth: 85.1"
- Weight (Approximate): 11.20 oz
- Package Contents:
- MultiPower Miniature Transceiver/Media Converter,
- External 100-240-VAC, 50-60-Hz Adapter,
- DIN Clip,
- Environmental Compliance: Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
- TAA Compliant: Yes
- Limited Warranty: 1 Year
|
|
|
|
|
|
|
