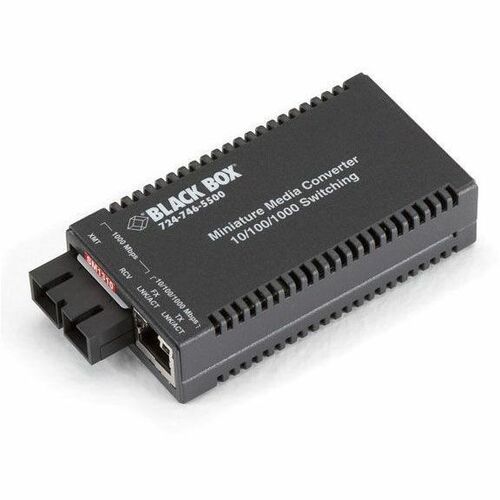

Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs. This single-strand fiber media converter enables you to make two Ethernet connections over a duplex fiber cable, so you need to run less fiber. Black Box Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC. This single-mode duplex fiber converter supports distances of up to 40 kilometers (24.8 mi.). For extra versatility, you can power the Miniature Media Converter through the external AC power supply included with each converter or through the optional rackmount PowerTray (sold separately).
-
General Information
Manufacturer: Black Box Corporation Manufacturer Part Number: LGC122A-R4 Manufacturer Website Address: http://www.blackbox.com Brand Name: Black Box Product Line: Multipower Miniature Product Name: MultiPower Miniature Transceiver/Media Converter Marketing Information: Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs. This single-strand fiber media converter enables you to make two Ethernet connections over a duplex fiber cable, so you need to run less fiber. Black Box Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC. This single-mode duplex fiber converter supports distances of up to 40 kilometers (24.8 mi.). For extra versatility, you can power the Miniature Media Converter through the external AC power supply included with each converter or through the optional rackmount PowerTray (sold separately). Product Type: Transceiver/Media Converter Interfaces/Ports
Total Number of Ports: 3
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 2
SC Port Type: Duplex
Media & Performance
Media Type Supported: - Optical Fiber
- Twisted Pair
Fiber Mode Supported: Single-mode
Fiber Optic Cable Wavelength: 1310 nm
Maximum Distance Supported: 40 km
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology: - 10/100/1000Base-T
- 1000Base-X
Power Description
Power Source: AC Adapter
Physical Characteristics
Form Factor: Rack-mountable
Height: 0.8"
Width: 1.8"
Depth: 3.4"
Weight (Approximate): 1.20 lb
Miscellaneous
Package Contents: - MultiPower Miniature Transceiver/Media Converter
- External 100-240-VAC, 50-60-Hz Adapter
Environmental Compliance: Restriction of Hazardous Substances (RoHS) TAA Compliant: Yes Warranty
Limited Warranty: 6 Year
