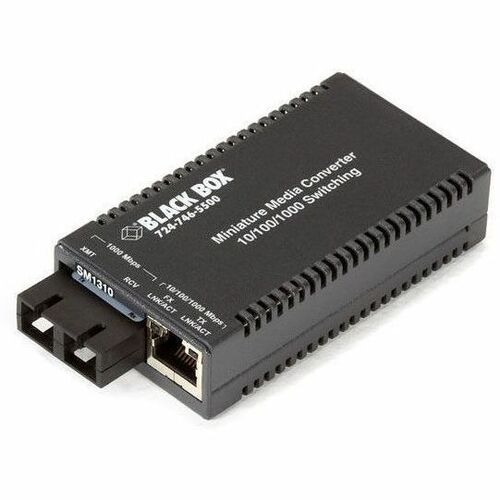

LGC121A-R4 Black Box MultiPower Miniature Transceiver/Media Converter

• Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
• Easy to install. Just plug and play.
• Compact size.
• Use inexpensive CAT5e twisted-pair cable on the copper side.

Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs. Black Box Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC. Choose from multimode and single-mode duplex fiber versions. For extra versatility, you can power the Miniature Media Converter through the external AC power supply included with each converter or through the optional rackmount PowerTray (sold separately).

• General Information

  ---

  Manufacturer: Black Box Corporation
  Manufacturer Part Number: LGC121A-R4
  Manufacturer Website Address: http://www.blackbox.com
  Brand Name: Black Box
  Product Line: Multipower Miniature
  Product Name: MultiPower Miniature Transceiver/Media Converter
  Marketing Information:

  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
  • Easy to install. Just plug and play.
  • Compact size.
  • Use inexpensive CAT5e twisted-pair cable on the copper side.

  Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs. Black Box Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC. Choose from multimode and single-mode duplex fiber versions. For extra versatility, you can power the Miniature Media Converter through the external AC power supply included with each converter or through the optional rackmount PowerTray (sold separately).


  Product Type: Transceiver/Media Converter

  Interfaces/Ports

  ---

  Total Number of Ports: 3
  Network (RJ-45): Yes
  Number of Network (RJ-45) Ports: 1
  Number of SC Ports: 2
  SC Port Type: Duplex

  Media & Performance

  ---

  Media Type Supported:
• Optical Fiber
• Twisted Pair
Fiber Mode Supported: Single-mode
Fiber Optic Cable Wavelength: 1310 nm
Maximum Distance Supported: 10 km

Network & Communication

---

Ethernet Technology: Gigabit Ethernet
Network Technology:

10/100/1000Base-T

1000Base-X

Power Description

---

Power Source: AC Adapter

Physical Characteristics

---

Form Factor: Rack-mountable
Weight (Approximate): 1.20 lb

Miscellaneous

---

Package Contents:

• MultiPower Miniature Transceiver/Media Converter
• External 100-240-VAC, 50-60-Hz Adapter

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
TAA Compliant: Yes

Warranty

---

Limited Warranty: 6 Year
