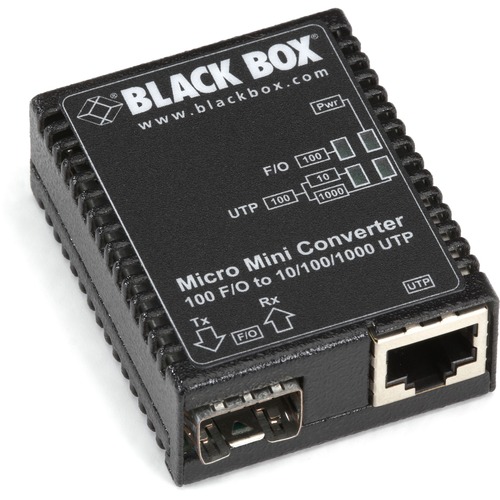

LMC400A Black Box Micro Mini LMC400A Transceiver/Media Converter

Ultra compact, weighing only 2.5 ounces.

SFP port supports 100BASE-FX using 155-Mbps SFP transceivers.

UTP port supports 10/100/1000BASE-T.

Supports Jumbo Ethernet frames up to 10,240 bytes.

LED indicators for power, UTP, and fiber status.

Bring fiber to the desktop conveniently and cost-effectively.

The Micro Mini Media Converter is ideal for bringing fiber to the desktop and for mobile applications where light weight, compact size, and low power requirements are critical. Weighing only 2.5 ounces and about the length of a house key, this ultra-compact media converter is portable yet powerful. For extra versatility, it can be USB-powered, making it easy to provide fiber connectivity to locations where AC or DC power is unavailable, for instance, field-deployed fiber-to-the-laptop. For easy portability, this tiny converter conveniently slips into a pocket or laptop carrying case. The converter is plug-and-play with an RJ-45 port that autonegotiates for speed, duplex mode, and crossover functions for PCs with 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet. On the fiber side, the converter accepts SFPs for connection to a variety of Fast Ethernet fiber types. Use it with Black Box 155-Mbps SFPs (LFP401-LFP404) or any other standard 155-Mbps SFP. Because it can be powered through a computer's USB 1.0 or 2.0 port, the Micro Mini Media Converter is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy.

• General Information

  ---

  Manufacturer: Black Box Corporation
  Manufacturer Part Number: LMC400A
  Manufacturer Website Address: http://www.blackbox.com
  Brand Name: Black Box
  Product Line: Micro Mini
  Product Model: LMC400A
  Product Name: Micro Mini LMC400A Transceiver/Media Converter
  Marketing Information:

• Ultra compact, weighing only 2.5 ounces.
• SFP port supports 100BASE-FX using 155-Mbps SFP transceivers.
• UTP port supports 10/100/1000BASE-T.
• Supports Jumbo Ethernet frames up to 10,240 bytes.
• LED indicators for power, UTP, and fiber status.
• Bring fiber to the desktop conveniently and cost-effectively.
The Micro Mini Media Converter is ideal for bringing fiber to the desktop and for mobile applications where light weight, compact size, and low power requirements are critical. Weighing only 2.5 ounces and about the length of a house key, this ultra-compact media converter is portable yet powerful. For extra versatility, it can be USB-powered, making it easy to provide fiber connectivity to locations where AC or DC power is unavailable, for instance, field-deployed fiber-to-the-laptop. For easy portability, this tiny converter conveniently slips into a pocket or laptop carrying case. The converter is plug-and-play with an RJ-45 port that autonegotiates for speed, duplex mode, and crossover functions for PCs with 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet. On the fiber side, the converter accepts SFPs for connection to a variety of Fast Ethernet fiber types. Use it with Black Box 155-Mbps SFPs (LFP401-LFP404) or any other standard 155-Mbps SFP. Because it can be powered through a computer's USB 1.0 or 2.0 port, the Micro Mini Media Converter is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy.

Product Type: Transceiver/Media Converter

Interfaces/Ports

---

Total Number of Ports: 1
Network (RJ-45): Yes
DVI: No
USB: No
Management Port: No
Number of Network (RJ-45) Ports: 1

Media & Performance

---

Media Type Supported:

Optical Fiber

Twisted Pair

I/O Expansions

---

Total Number of Expansion Slots: 1
Expansion Slot Type: SFP
Number of SFP Slots: 1

Network & Communication

---

Ethernet Technology:

Fast Ethernet

Gigabit Ethernet

Network Technology:

10/100/1000Base-TX

100Base-FX

Power Description

---

Power Source: AC Adapter

Physical Characteristics

---

Form Factor:

Desktop

Wall Mountable

Height: 0.8"
Width: 1.8"
Depth: 2.3"
Weight (Approximate): 2.50 oz

Miscellaneous

---

Package Contents:

• Micro Mini LMC400A Transceiver/Media Converter
• Power Adapter

Environmentally Friendly: Yes
Country of Origin: United States
TAA Compliant: Yes

Warranty

---

Limited Warranty: 2 Year
