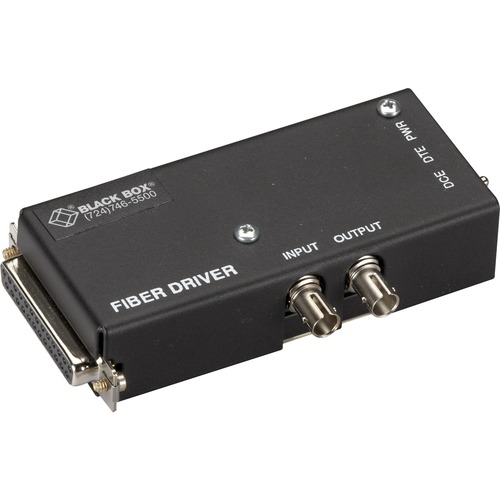

MD940A-F Black Box Async RS232 Extender over Fiber - DB25 Female, ST Multimode

MD940A-F




Direct ship from manufacturer, lead time varies
Your Price: $243.40


Mfg. Part:: MD940A-F
quantity:

Overview Technical Specifications Why Choose Us to Buy


  • Autosensing 110-220-VAC power supply ensures reliability and continuous transmission.
  • A range select feature compensates for coupled power variations.
  • Switch-selectable DTE/DCE option. Set to perform like a DTE so it can communicate with another DCE device. No special cables are needed.
  • Support RS-232 async, bidirectional transmission.
  • Use with multimode fiber cable.

    •
    Interfaces/Ports
    Total Number of Ports: 3
    Number of ST Ports: 2
    ST Port Type: Duplex
    Media & Performance
    Media Type Supported: Optical Fiber
    Fiber Mode Supported: Multi-mode
    Fiber Optic Wavelength: 850 nm
    Maximum Distance Supported: 2.49 Mile
    Fiber Optic Cable Standard: 62.5 µm
    Power Description
    Power Source: Power Supply
    Physical Characteristics
    Height: 1"
    Width: 2.7"
    Depth: 4.2"
    Weight (Approximate): 1.40 lb
    Miscellaneous
    Environmentally Friendly: Yes
    Country of Origin: United States
    TAA Compliant: Yes
    Warranty
    Limited Warranty: 1 Year
    Key Features


    • Product Description

    • Autosensing 110-220-VAC power supply ensures reliability and continuous transmission.
    • A range select feature compensates for coupled power variations.
    • Switch-selectable DTE/DCE option. Set to perform like a DTE so it can communicate with another DCE device. No special cables are needed.
    • Support RS-232 async, bidirectional transmission.
    • Use with multimode fiber cable.


    • Total Number of Ports: 3
    • Number of ST Ports: 2
    • ST Port Type: Duplex
    • Media Type Supported: Optical Fiber
    • Fiber Mode Supported: Multi-mode
    • Fiber Optic Wavelength: 850 nm
    • Maximum Distance Supported: 2.49 Mile
    • Fiber Optic Cable Standard: 62.5 µm
    • Power Source: Power Supply
    • Height: 1"
    • Width: 2.7"
    • Depth: 4.2"
    • Weight (Approximate): 1.40 lb
    • Environmentally Friendly: Yes
    • Country of Origin: United States
    • TAA Compliant: Yes
    • Limited Warranty: 1 Year
