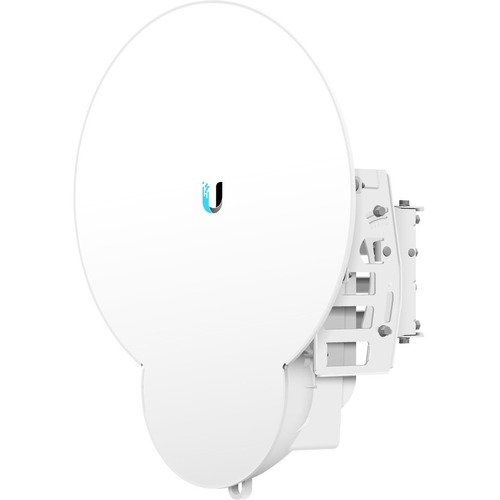

Featuring our INVICTUS™ custom silicon for 2+ million packets-per-second processing, the airFiber®24HD is ideal for outdoor, PtP bridging and backhaul applications requiring maximum performance. Revolutionary Performance Featuring the world's best unlicensed-band spectral efficiency at 15.9 bps/Hz, the airFiber®24 HD supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps. Proven Links: 20+ km The airFiber®24 HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range - up to 20+ km - among 24 GHz products and allows for constellation threshold extension. Low-Latency Carrier Backhaul The airFiber®24 HD supports FDD (Frequency Division Duplexing) in full-duplex mode for 0.2 millisecond latency, resulting in increased efficiency for carrier-class network backhauls. 24 GHz Unlicensed Band The airFiber®24 HD operates in worldwide, license-free, 24 GHz frequencies. Users can deploy airFiber®24HD almost anywhere they choose (subject to local country regulations).
-
General Information Manufacturer: Ubiquiti Inc. Manufacturer Part Number: AF-24HD-US Manufacturer Website Address: http://www.ui.com Brand Name: Ubiquiti Product Line: airFiber Product Model: AF24HD Product Name: airFiber AF24HD Wireless Bridge Marketing Information: Featuring our INVICTUS™ custom silicon for 2+ million packets-per-second processing, the airFiber®24HD is ideal for outdoor, PtP bridging and backhaul applications requiring maximum performance. Revolutionary Performance Featuring the world's best unlicensed-band spectral efficiency at 15.9 bps/Hz, the airFiber®24 HD supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps. Proven Links: 20+ km The airFiber®24 HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range - up to 20+ km - among 24 GHz products and allows for constellation threshold extension. Low-Latency Carrier Backhaul The airFiber®24 HD supports FDD (Frequency Division Duplexing) in full-duplex mode for 0.2 millisecond latency, resulting in increased efficiency for carrier-class network backhauls. 24 GHz Unlicensed Band The airFiber®24 HD operates in worldwide, license-free, 24 GHz frequencies. Users can deploy airFiber®24HD almost anywhere they choose (subject to local country regulations). Product Type: Wireless Bridge Technical Information Frequency Band: 24 GHz Outdoor Antenna Range: 12.4 Mile Wireless Transmission Speed: 2 Gbit/s MIMO Technology: Yes Interfaces/Ports Ethernet Technology: - Ethernet
- Fast Ethernet
- Gigabit Ethernet
Number of Network (RJ-45) Ports: 1 PoE (RJ-45) Port: No PoE PD Port: Yes VGA: No HDMI: No USB: No Powerline: No Management Port: Yes Physical Characteristics Form Factor: Pole-mountable Height: 14.6" Width: 23.3" Diameter: 30.2" Weight (Approximate): 38.14 lb Miscellaneous Package Contents: - airFiber AF24HD Wireless Bridge
- PoE GigE Adapter
- Pole Mount Kit
Country of Origin: China Warranty Limited Warranty: 1 Year
Dedicated account managers are available to assist you with purchasing and presales questions at 877-712-2230 Monday through Friday 8-5pm. What Forms Of Payment Do We Take?We accept all forms of payment including Visa, Mastercard, American Express, Discover, Wire Transfer, and Check in Advance. Purchase orders are accepted and net terms are given based on a credit check. Why Buy From ITO?ITO Solutions, Inc. purpose is to provide you, our client, with best in class technology solutions to help you run your network efficiently by leveraging our integrity, partnerships, and years of experience within the IT industry. Our account managers are here to answer your questions and provide you with solutions very effectively.
|
|
|
|
|
|
|
|
|
|
|
|
|
Key Features
Product Description
Featuring our INVICTUS™ custom silicon for 2+ million packets-per-second processing, the airFiber®24HD is ideal for outdoor, PtP bridging and backhaul applications requiring maximum performance. Revolutionary Performance Featuring the world's best unlicensed-band spectral efficiency at 15.9 bps/Hz, the airFiber®24 HD supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps. Proven Links: 20+ km The airFiber®24 HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range - up to 20+ km - among 24 GHz products and allows for constellation threshold extension. Low-Latency Carrier Backhaul The airFiber®24 HD supports FDD (Frequency Division Duplexing) in full-duplex mode for 0.2 millisecond latency, resulting in increased efficiency for carrier-class network backhauls. 24 GHz Unlicensed Band The airFiber®24 HD operates in worldwide, license-free, 24 GHz frequencies. Users can deploy airFiber®24HD almost anywhere they choose (subject to local country regulations).
- Frequency Band: 24 GHz
- Outdoor Antenna Range: 12.4 Mile
- Wireless Transmission Speed: 2 Gbit/s
- MIMO Technology: Yes
- Ethernet Technology: Ethernet, Fast Ethernet, Gigabit Ethernet
- Number of Network (RJ-45) Ports: 1
- PoE (RJ-45) Port: No
- PoE PD Port: Yes
- VGA: No
- HDMI: No
- USB: No
- Powerline: No
- Management Port: Yes
- Form Factor: Pole-mountable
- Height: 14.6"
- Width: 23.3"
- Diameter: 30.2"
- Weight (Approximate): 38.14 lb
- Package Contents:
airFiber AF24HD Wireless Bridge, PoE GigE Adapter, Pole Mount Kit, - Country of Origin: China
- Limited Warranty: 1 Year
|
|
|
|
|
|
|
