General Information
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 7Y48A02MNA
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Lenovo
Product Line: ThinkSystem
Product Series: ST50
Product Model: 7Y48A02MNA

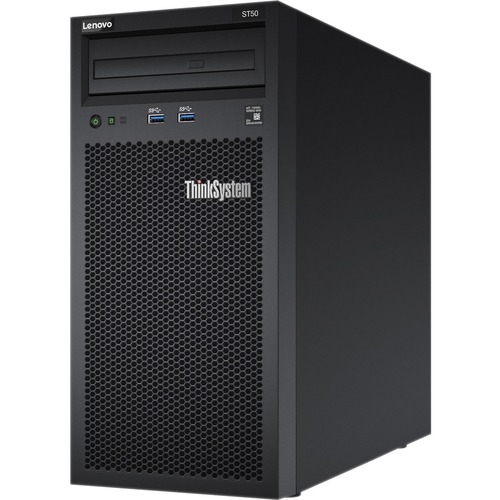

Product Name: ThinkSystem ST50 7Y48A02MNA Server
Marketing Information:
The Lenovo ThinkSystem ST50 1-socket 4U rack-mountable tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server supports one Intel Xeon E-2200 Series processor (formerly codenamed "Coffee Lake-S Refresh") and up to 64 GB of 2666 MHz TruDDR4 ECC memory.
Product Type: Server
Processor
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: E-2224G
Processor Core: Quad-core (4 Core)
Processor Speed: 3.50 GHz
Cache: 8 MB
Chipset
Chipset Manufacturer: Intel
Chipset Model: C246
Memory
Standard Memory: 8 GB
Maximum Memory Supported: 64 GB
Memory Technology: TruDDR4
Memory Clock Speed: 2.67 GHz
Number of Total Memory Slots: 4
Number of Occupied Memory Slots: 1
Error Checking: ECC
Storage
Total Hard Drive Capacity: No
Optical Drive Type: DVD-Writer
Controllers
Controller Type: Serial ATA/600
RAID Supported: No
I/O Expansions
Number of Total Expansion Bays: 4
Number of External 5.25" Bays: 1
Number of 3.5" Bays: 3
Hot Swappable Bays: No
Number of Total Expansion Slots: 3
PCI Express x1 (Gen 3.x) Slots: 1
PCI Express x16 (Gen 3.x) Slots: 2
PCI Express Details: Slot 1: PCIe 3.0 x16 full-height half-length (FHHL) Slot 2: PCIe 3.0 x1 full-height half-length (FHHL) Slot 3: PCIe 3.0 x4 (physical connector is x16) full-height half-length (FHHL)
Display & Graphics
Graphics Controller Manufacturer: No
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 6
Network (RJ-45): Yes
Remote Management: Yes
Remote Management Controller: Intel Active Management Technology (AMT) 12.0
Operating System
Operating System Supported: Windows ServerRed Hat Enterprise LinuxWindows Server 2016Windows Server 2019SUSE Linux Enterprise Server 12SuSE Linux Enterprise Server 15Red Hat Enterprise Linux 7.7Red Hat Enterprise Linux 7.8Red Hat Enterprise Linux 7.9Red Hat Enterprise Linux 8.1Red Hat Enterprise Linux 8.2Red Hat Enterprise Linux 8.3Operating System: No
Power Description
Input Voltage: 120 V AC230 V ACNumber of Power Supplies Supported: 1
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 250 W
Miscellaneous
Package Contents:
- ThinkSystem ST50 7Y48A02MNA Server
- Documentation Flyer
Security Features:
- Power-on password
- Administrator's password
- Trusted Platform Module (TPM), supporting TPM 1.2 or TPM 2.0
- Padlock loop
- Kensington cable slot for physical security
Environmentally Friendly: Yes
Environmental Certification:
CELPCECP Physical Characteristics
Form Factor: Tower
Rack Height: 4U
Height: 14.8"
Width: 6.9"
Depth: 16.7"
Weight (Approximate): 24.69 lb
Warranty
Limited Warranty: 3 Year
