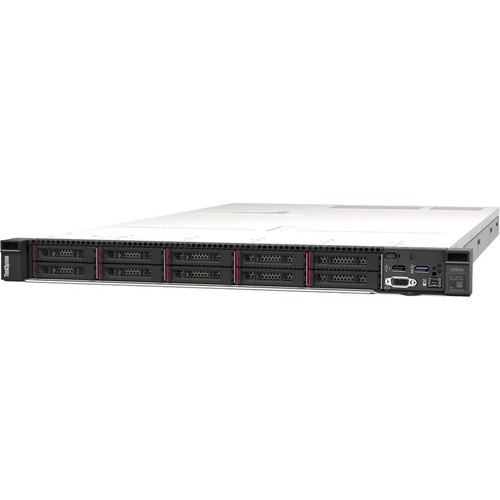

7D2XA060NA Lenovo ThinkSystem SR645 7D2XA060NA 1U Rack Server - 1 EPYC 7303 2.40 GHz - 32 GB RAM - 1.92 TB SSD - (1 x 1.92TB) SSD Configuration - 12Gb/s SAS, Serial ATA/600 Controller

The Lenovo ThinkSystem SR645 is a 2-socket 1U server that features the AMD EPYC 7002 "Rome" and AMD EPYC 7003 "Milan" families of processors. With up to 64 cores per processor and support for the new PCIe 4.0 standard for I/O, the SR645 offers the ultimate in two-socket server performance in a space-saving 1U form factor.

• General Information

  ---

  Manufacturer: Lenovo Group Limited
  Manufacturer Part Number: 7D2XA060NA
  Manufacturer Website Address: http://www.lenovo.com/us/en/
  Brand Name: Lenovo
  Product Line: ThinkSystem
  Product Series: SR645
  Product Model: 7D2XA060NA
  Product Name: ThinkSystem SR645 7D2XA060NA Server
  Marketing Information:

  The Lenovo ThinkSystem SR645 is a 2-socket 1U server that features the AMD EPYC 7002 "Rome" and AMD EPYC 7003 "Milan" families of processors. With up to 64 cores per processor and support for the new PCIe 4.0 standard for I/O, the SR645 offers the ultimate in two-socket server performance in a space-saving 1U form factor.


  Product Type: Server

  Processor

  ---

  Number of Processors Supported: 2
  Number of Processors Installed: 1
  Processor Type: EPYC
  Processor Generation: 3rd Gen
  Processor Model: 7303
  Processor Core: Hexadeca-core (16 Core)
  Processor Speed: 2.40 GHz
  Cache: 64 MB

  Chipset

  ---

  Chipset Manufacturer: AMD

  Memory

  ---

  Standard Memory: 32 GB
  Maximum Memory Supported: 8 TB
  Memory Technology: TruDDR4
  Memory Clock Speed: 3.20 GHz
  Total Number of Memory Slots: 32
  Number of Occupied Memory Slots: 1
  Error Checking: ECC
  Signal Processing: Registered (Buffered)

  Storage

  ---

  Number of Solid State Drives: 1
  Total Solid State Drive Capacity: 1.92 TB
  Solid State Drive Interface: Serial ATA/600

  Controllers

  ---

  Controller Type:
• 12Gb/s SAS
• Serial ATA/600
Controller Model: 930-8i
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60

I/O Expansions

---

Number of Total Expansion Bays: 8
Number of Internal 2.5" Bays: 8
Number of SFF Bays: 8
Hot Swappable Bays: Yes
Total Number of Expansion Slots: 2
PCI Express Details: 2x LP Gen4

Display & Graphics

---

Graphics Controller Model: G200
Graphics Memory Capacity: 16 MB

Network & Communication

---

Ethernet Technology: Gigabit Ethernet

Interfaces/Ports

---

Total Number of USB Ports: 6
Number of USB 2.0 Ports: 1
Network (RJ-45): Yes
VGA: Yes
Remote Management: Yes
Remote Management Controller: XClarity Controller (XCC) Enterpise

Operating System

---

Operating System Supported:

Windows Server 2016

Windows Server 2019

Windows Server 2022

Red Hat Enterprise Linux 8.3

Red Hat Enterprise Linux 8.4

Red Hat Enterprise Linux 8.5

Red Hat Enterprise Linux 8.6

Red Hat Enterprise Linux 8.7

Red Hat Enterprise Linux 9.0

Red Hat Enterprise Linux 9.1

SUSE Linux Enterprise Server 12 SP5

SUSE Linux Enterprise Server 15 SP2

SUSE Linux Enterprise Server 15 SP3

SUSE Linux Enterprise Server 15 SP4

SUSE Linux Enterprise Server 15 SP5

Red Hat Enterprise Linux 8.8

Red Hat Enterprise Linux 9.2

Ubuntu 22.04 LTS x64

Windows Server 2025

Red Hat Enterprise Linux 8.10

Red Hat Enterprise Linux 8.9

Red Hat Enterprise Linux 9.3

Red Hat Enterprise Linux 9.4

Ubuntu 24.04 LTS x64

Power Description

---

Input Voltage:

120 V AC

230 V AC

Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 2
Plug/Connector Type: C13
Maximum Power Supply Wattage: 1100 W
Redundant Power Supply: Yes
Hot Swappable Power Supply: Yes

Miscellaneous

---

Package Contents:

• ThinkSystem SR645 7D2XA060NA Server
• Slide Rail Kit

Security Features:

• Chassis intrusion switch
• Power-on password
• Administrator's password
• Trusted Platform Module (TPM), supporting TPM 2.0

Energy Star: Yes
Energy Efficiency Certification: ENERGY STAR 3.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Physical Characteristics

---

Form Factor: Rack
Rack Height: 1U
Height: 1.7"
Width: 17.3"
Depth: 30.4"
Weight (Approximate): 44.53 lb

Warranty

---

Limited Warranty: 3 Year
Additional Warranty Information:

Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
