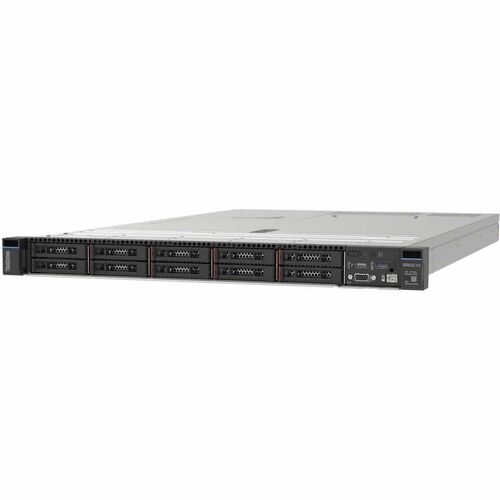

7D73A05NNA Lenovo ThinkSystem SR630 V3 7D73A05NNA 1U Rack Server - 1 Xeon Silver 4510 2.40 GHz - 32 GB RAM - Serial ATA/600 Controller

The Lenovo ThinkSystem SR630 V3 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

• General Information

  ---

  Manufacturer: Lenovo Group Limited
  Manufacturer Part Number: 7D73A05NNA
  Manufacturer Website Address: http://www.lenovo.com/us/en/
  Brand Name: Lenovo
  Product Line: ThinkSystem
  Product Series: SR630 V3
  Product Model: 7D73A05NNA
  Product Name: ThinkSystem SR630 V3 7D73A05NNA Server
  Marketing Information:

  The Lenovo ThinkSystem SR630 V3 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.


  Product Type: Server

  Processor

  ---

  Number of Processors Supported: 2
  Number of Processors Installed: 1
  Processor Type: Xeon Silver
  Processor Generation: 5th Gen
  Processor Model: 4510
  Processor Core: Dodeca-core (12 Core)
  Processor Speed: 2.40 GHz
  Cache: 30 MB

  Chipset

  ---

  Chipset Manufacturer: Intel
  Chipset Model: C741

  Memory

  ---

  Standard Memory: 32 GB
  Maximum Memory Supported: 8 TB
  Memory Technology: TruDDR5
  Memory Clock Speed: 4.40 GHz
  Total Number of Memory Slots: 32.0
  Number of Occupied Memory Slots: 1
  Intel Optane Memory Ready: No
  Error Checking: ECC
  Signal Processing: Registered (Buffered)

  Controllers

  ---

  Controller Type: Serial ATA/600
  Controller Model: 940-8i
  RAID Supported: Yes
  RAID Levels: 0, 1, 5, 10, JBOD

  I/O Expansions

  ---

  Number of Total Expansion Bays: 8
  Number of Internal 2.5" Bays: 8
  Number of SFF Bays: 8
  Hot Swappable Bays: Yes
  Total Number of Expansion Slots: 2
  PCI Express Details: 2x LP Gen5

  Display & Graphics

  ---

  Graphics Memory Capacity: 16 MB

  Interfaces/Ports

  ---

  Total Number of USB Ports: 6
  Number of USB 2.0 Ports: 1
  Network (RJ-45): Yes
  VGA: Yes
  Remote Management: Yes
  Remote Management Controller: XClarity Controller (XCC) Standard

  Operating System

  ---

  Operating System Supported:
• Windows Server 2019
• Windows Server 2022
• Red Hat Enterprise Linux 8.6
• Red Hat Enterprise Linux 8.7
• Red Hat Enterprise Linux 8.8
• Red Hat Enterprise Linux 8.9
• Red Hat Enterprise Linux 8.10
• Red Hat Enterprise Linux 9.0
• Red Hat Enterprise Linux 9.1
• Red Hat Enterprise Linux 9.2
• Red Hat Enterprise Linux 9.3
• Red Hat Enterprise Linux 9.4
• SUSE Linux Enterprise Server 15 SP4
• SUSE Linux Enterprise Server 15 SP5
• Ubuntu 22.04 LTS x64

Power Description

---

Input Voltage:

120 V AC

230 V AC

Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 1
Plug/Connector Type: C13
Maximum Power Supply Wattage: 750 W
Hot Swappable Power Supply: Yes

Miscellaneous

---

Package Contents:

• ThinkSystem SR630 V3 7D73A05NNA Server
• Toolless Slide Rail Kit

Security Features:

• Chassis intrusion switch
• Power-on password
• Administrator's password
• Root of Trust module supporting TPM 2.0
• Platform Firmware Resiliency (PFR)

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification:

China Environmental Labeling Program (CELP)

Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)

GREENGUARD

Energy Efficiency Certification:

China Energy Conservation Program (CECP)

ENERGY STAR 4.0

Energy Efficiency Compliance: Energy-related Products Directive Lot 9 (ErP Lot 9)
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Physical Characteristics

---

Form Factor: Rack
Rack Height: 1U
Height: 1.7"
Width: 17.3"
Depth: 30.4"
Weight (Approximate): 45.86 lb

Warranty

---

Limited Warranty: 3 Year
Additional Warranty Information:

Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
