General Information
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 40EMTD9044
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Instorescreen
Product Line: InTouch
Product Model: 101

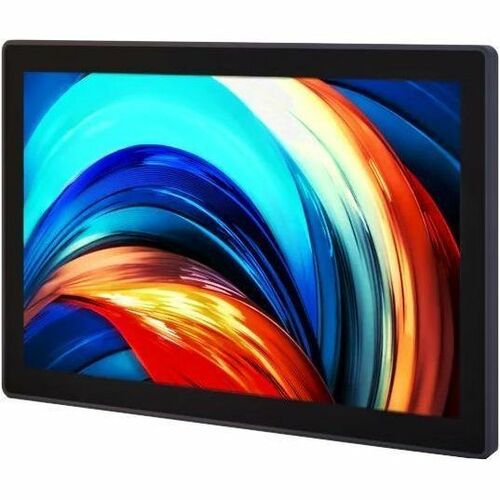

Product Name: InTouch 101 LCD Touchscreen Monitor
Marketing Information:
Instorescreen´s INTOUCH 101 is our monitor for POS and concierge applications. It is ideal as POS enhancer and close to customer service and experience.
FEATURES
- Mini HDMI and USB-C inputs
- Hardened glass front
- Sturdy aluminum chassis, environmentally friendly
- Standard 3-year manufacturer warranty
InTouch Series
The InTouch has been developed from the ground to be one of the most versatile, flexible and appealing professional displays on the market today.
Our new manufacturing approach allows us to integrate the latest antimicrobial technology in a design that rivals the most elegant displays produced today, while maintaining the durability required in high traffic retail installations.
Product Type: LCD Touchscreen Monitor
Technical Information
Screen Size Class: 10"
Viewable Screen Size: 10.1"
Screen Mode: WXGA
Response Time: 30 ms
Aspect Ratio: 16:10
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
Features: On-screen Display (OSD)AntimicrobialActive Display Area (H x V): 8.58" x 5.38"
Video
Maximum Resolution: 1280 x 800
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 1,000:1
Brightness: 300 Nit
Touchscreen Information
Touchscreen Type: Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
Interfaces/Ports
Mini HDMI: Yes
USB: Yes
USB Type-C: Yes
Environmental Conditions
Operating Temperature Range: 50°F (10°C) to 104°F (40°C)
Operating Humidity Range: 20% to 80% (Non-condensing)
Power Description
Maximum Power Consumption: 8 W
Physical Characteristics
Color Family: Black
Product Color: Black
VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75100 x 100Height: 6.4"
Width: 9.5"
Depth: 0.7"
Weight (Approximate): 1.76 lb
Miscellaneous
Package Contents:
- InTouch 101 LCD Touchscreen Monitor
- USB-C To USB-C Gen 2
UL Listed: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Application/Usage:
ProfessionalPoint of Sale (POS)Retail Warranty
Limited Warranty: 3 Year
