General Information
Manufacturer: Dell Technologies
Manufacturer Part Number: 17PX2
Manufacturer Website Address: http://www.delltechnologies.com
Brand Name: Dell
Product Line: Precision
Product Series: 7000
Product Model: 7680

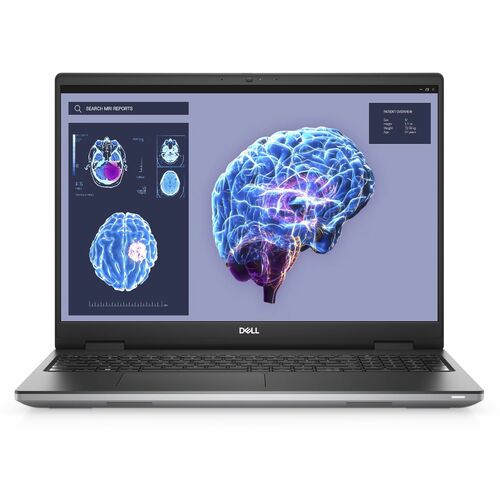

Product Name: Mobile Precision 7680
Marketing Information:
Dell's most scalable and powerful 16" mobile workstations
A highly scalable and powerful 16" workstation
Our ultra scalable 16" mobile workstation is optimised to your configurations.
Product Type: Mobile Workstation
Technical Information
AI-powered: Yes
Processor
Processor Manufacturer: Intel
Processor Type: Core i5
Processor Generation: 13th Gen
Processor Model: i5-13600HX
Maximum Turbo Speed: 4.80 GHz
Processor Core: Tetradeca-core (14 Core)
Processor Threads: 20
vPro Technology: Yes
Chipset
Chipset Manufacturer: Intel
Memory
Standard Memory: 32 GB
Maximum Supported System Memory: 64 GB
System Memory Technology: DDR5 SDRAM
System Memory Form Factor: SODIMM
Installed Slot Memory: 32 GB
Installed Slot Memory Configuration: 2 x 16 GB
Total Number of Memory Slots: 2
Number of Occupied Memory Slots: 2
Number of Free Memory Slots: 0
Storage
Drive Type: SSD
Total Solid State Drive Capacity: 1 TB
SSD Form Factor: M.2
Display & Graphics
Screen Size: 16"
Screen Mode: Full HD Plus
Display Screen Type: LCD
Screen Resolution: 1920 x 1200
Brightness: 250 Nit
Color Gamut: 45% NTSC
Standard Refresh Rate: 60 Hz
Touchscreen: No
Graphics Controller Manufacturer: NVIDIA
Graphics Controller Model: RTX 1000
Graphics Memory Capacity: 6 GB
Graphics Memory Technology: GDDR6
Graphics Memory Accessibility: Dedicated
VR Ready: Yes
Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ax
Wi-Fi Generation: Wi-Fi 6E
Wimax: No
Ethernet Technology: Gigabit Ethernet
Bluetooth: Yes
WWAN Supported: No
Near Field Communication: No
Built-in Devices
Camera Privacy Shutter: Yes
Front Camera/Webcam: Yes
Finger Print Reader: No
Smart Card Reader: Yes
Sound Mode: Stereo
Speaker Power Details: 4 x 2W
Interfaces/Ports
HDMI: Yes
Total Number of USB Ports: 3
Number of USB 3.2 Gen 1 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-C Ports: 1
Network (RJ-45): Yes
Number of Thunderbolt 4 Ports: 2
Operating System
Operating System Platform: Windows
Operating System: Windows 11 Pro
Operating System Language: English/Spanish/French/Brazilian Portuguese
Input Devices
Keyboard Localization: English (US)
Keyboard Backlight: No
Battery Information
Number of Cells: 6-cell
Battery Weight: 13.51 oz
Power Description
Included Charger Power: 180 W
Physical Characteristics
Color Family: Gray
Product Color: Aluminum Titan Gray
Form Factor: Clamshell
Height: 0.97"
Width: 14"
Depth: 10.2"
Weight (Approximate): 5.73 lb
Miscellaneous
Package Contents:
- Mobile Precision 7680
- AC Adapter
- Lithium Polymer Battery
- Documentation
- E5 Power Cord 1M US
- Quick Setup Guide for Mobile Precision 7680
Charger Included: Yes
Energy Star: No
Features:
Anti-glare ScreenExpressChargeCountry of Origin: Vietnam
TCO Certified: Yes
Warranty
Limited Warranty: 3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
