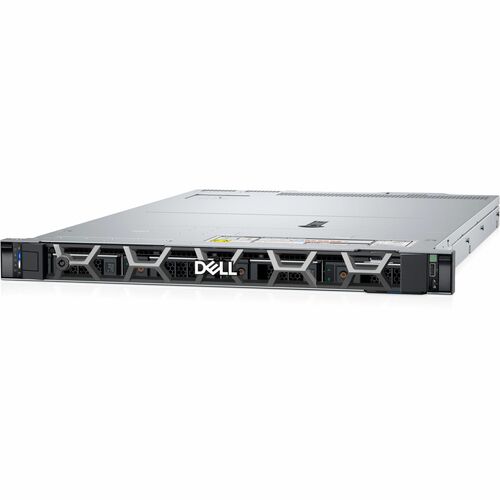

Best choice in balanced and dense compute for the most popular IT applications | Buy the performance and density you need The new Dell PowerEdge R660xs is a 1U, two-socket rack server. Buy the best fit in dense performance with this purpose-built 1U system. Focused on delivering the latest technology to power the most popular applications and workloads used by businesses today, including virtualization, scale out-database and high performance compute. All delivered in a thoughtfully crafted platform that will provide dense compute that fits in your current infrastructure. Easily configurable - Add up to two 5th generation Intel® Xeon® Scalable processors with up to 28 cores and 4th generation Intel® Xeon® Scalable processors with up to 32 cores per socket for faster performance
- Accelerate in-memory workloads with up to 16 DDR5 RDIMMS up to 5200 MT/sec
- Improve data throughput and reduce latency with support up to 5 I/O devices (up to 3 PCIe slots, 1 OCP 3.0 networking slot, and 1 dedicated PERC slot)
- Storage options include up to 4x 3.5" HDDs/SSDs; or up to 10x 2.5" HDDs/SSDs/NVMe
A breeze to cool - Thoughtfully designed to fit in your current air-cooled infrastructure
- Alleviate the worry about expensive liquid cooling retrofitting to your data center
- Sychronize your workload needs with a tailored performance configuration that is air-cooled
- Minimize the carbon footprint of your data center by better matching the system power consumption with anticipated workload requirements
Cyber Resilient Architecture for Zero Trust IT environment & operations Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations. Increase efficiency and accelerate operations with autonomous collaboration The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC. Sustainability From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies Services. Rest easier with Dell Technologies Services Maximize your PowerEdge Servers with comprehensive services ranging from Consulting, to ProDeploy and ProSupport suites, Data Migration and more - available across 170 locations and backed by our 60K+employees and partners.
-
General Information
Manufacturer: Dell Technologies Manufacturer Part Number: 8GP0F Manufacturer Website Address: http://www.delltechnologies.com Brand Name: Dell Product Line: PowerEdge Product Model: R660xs Product Name: PowerEdge R660xs Server Marketing Information: Best choice in balanced and dense compute for the most popular IT applications | Buy the performance and density you need The new Dell PowerEdge R660xs is a 1U, two-socket rack server. Buy the best fit in dense performance with this purpose-built 1U system. Focused on delivering the latest technology to power the most popular applications and workloads used by businesses today, including virtualization, scale out-database and high performance compute. All delivered in a thoughtfully crafted platform that will provide dense compute that fits in your current infrastructure. Easily configurable - Add up to two 5th generation Intel® Xeon® Scalable processors with up to 28 cores and 4th generation Intel® Xeon® Scalable processors with up to 32 cores per socket for faster performance
- Accelerate in-memory workloads with up to 16 DDR5 RDIMMS up to 5200 MT/sec
- Improve data throughput and reduce latency with support up to 5 I/O devices (up to 3 PCIe slots, 1 OCP 3.0 networking slot, and 1 dedicated PERC slot)
- Storage options include up to 4x 3.5" HDDs/SSDs; or up to 10x 2.5" HDDs/SSDs/NVMe
A breeze to cool - Thoughtfully designed to fit in your current air-cooled infrastructure
- Alleviate the worry about expensive liquid cooling retrofitting to your data center
- Sychronize your workload needs with a tailored performance configuration that is air-cooled
- Minimize the carbon footprint of your data center by better matching the system power consumption with anticipated workload requirements
Cyber Resilient Architecture for Zero Trust IT environment & operations Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations. Increase efficiency and accelerate operations with autonomous collaboration The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC. Sustainability From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies Services. Rest easier with Dell Technologies Services Maximize your PowerEdge Servers with comprehensive services ranging from Consulting, to ProDeploy and ProSupport suites, Data Migration and more - available across 170 locations and backed by our 60K+employees and partners. Product Type: Server Processor
Number of Processors Supported: 2
Number of Processors Installed: 1
Processor Type: Xeon Silver
Processor Model: 4410Y
Processor Core: Dodeca-core (12 Core)
Processor Speed: 2 GHz
Cache: 30 MB
Chipset
Chipset Manufacturer: Intel
Memory
Standard Memory: 32 GB
Maximum Memory Supported: 1.50 TB
Memory Technology: DDR5 SDRAM
Number of Occupied Memory Slots: 2
Error Checking: ECC
Signal Processing: Registered (Buffered)
Storage
Total Solid State Drive Capacity: 480 GB
Solid State Drive Interface: Serial ATA/600
Controllers
Controller Model: Front PERC H755 Front Load
I/O Expansions
Number of Total Expansion Bays: 8
Number of Internal 2.5" Bays: 8
Number of SFF Bays: 8
PCI Express Details: 1 CPU Configuration: Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5); 2 CPU configuration: Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5)
Riser Card: Riser Config 3, Low Profile, 1x16 LP Slots (Gen4)
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 3
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 1
Network (RJ-45): Yes
VGA: Yes
Remote Management: Yes
Remote Management Controller: iDRAC9, Datacenter 16G
Operating System
Operating System Supported: - Ubuntu Server
- Hyper-V
- Windows Server
- Red Hat Enterprise Linux
- SuSE Linux Enterprise Server
Power Description
Input Voltage: - 120 V AC
- 230 V AC
Number of Power Supplies Installed: 2
Plug/Connector Type: NEMA 5-15P to C13
Maximum Power Supply Wattage: 800 W
Redundant Power Supply: Yes
Hot Swappable Power Supply: Yes
Miscellaneous
Package Contents: - PowerEdge R660xs Server
- 2 X NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America
- ReadyRails A11 drop-in/stab-in Slide Combo Rails Without Cable Management Arm
- PowerEdge R660xs, 8x2.5, Short Drive Shipping Material
Security Features: - Cryptographically signed firmware
- Data at Rest Encryption (SEDs with local or external key mgmt)
- Secure Boot
- Secure Erase
- Secured Component Verification (Hardware integrity check)
- Silicon Root of Trust
- System Lockdown (requires iDRAC9 Enterprise or Datacenter)
- TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.7"
Width: 19"
Depth: 29.5"
Weight (Approximate): 42.88 lb
Warranty
Limited Warranty: 40 Month Additional Warranty Information: - Next Bus. Day 39MO(Disti SNS), 39 Month(s)
- Next Bus. Day (Disti SNS), 40 Month(s)
 Dedicated account managers are available to assist you with purchasing and presales questions at 877-712-2230 Monday through Friday 8-5pm. What Forms Of Payment Do We Take?We accept all forms of payment including Visa, Mastercard, American Express, Discover, Wire Transfer, and Check in Advance. Purchase orders are accepted and net terms are given based on a credit check. Why Buy From ITO?ITO Solutions, Inc. purpose is to provide you, our client, with best in class technology solutions to help you run your network efficiently by leveraging our integrity, partnerships, and years of experience within the IT industry. Our account managers are here to answer your questions and provide you with solutions very effectively.
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Key Features
Product Description
Best choice in balanced and dense compute for the most popular IT applications | Buy the performance and density you need The new Dell PowerEdge R660xs is a 1U, two-socket rack server. Buy the best fit in dense performance with this purpose-built 1U system. Focused on delivering the latest technology to power the most popular applications and workloads used by businesses today, including virtualization, scale out-database and high performance compute. All delivered in a thoughtfully crafted platform that will provide dense compute that fits in your current infrastructure. Easily configurable - Add up to two 5th generation Intel® Xeon® Scalable processors with up to 28 cores and 4th generation Intel® Xeon® Scalable processors with up to 32 cores per socket for faster performance
- Accelerate in-memory workloads with up to 16 DDR5 RDIMMS up to 5200 MT/sec
- Improve data throughput and reduce latency with support up to 5 I/O devices (up to 3 PCIe slots, 1 OCP 3.0 networking slot, and 1 dedicated PERC slot)
- Storage options include up to 4x 3.5" HDDs/SSDs; or up to 10x 2.5" HDDs/SSDs/NVMe
A breeze to cool - Thoughtfully designed to fit in your current air-cooled infrastructure
- Alleviate the worry about expensive liquid cooling retrofitting to your data center
- Sychronize your workload needs with a tailored performance configuration that is air-cooled
- Minimize the carbon footprint of your data center by better matching the system power consumption with anticipated workload requirements
Cyber Resilient Architecture for Zero Trust IT environment & operations Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations. Increase efficiency and accelerate operations with autonomous collaboration The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC. Sustainability From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies Services. Rest easier with Dell Technologies Services Maximize your PowerEdge Servers with comprehensive services ranging from Consulting, to ProDeploy and ProSupport suites, Data Migration and more - available across 170 locations and backed by our 60K+employees and partners.
- Number of Processors Supported: 2
- Number of Processors Installed: 1
- Processor Type: Xeon Silver
- Processor Model: 4410Y
- Processor Core: Dodeca-core (12 Core)
- Processor Speed: 2 GHz
- Cache: 30 MB
- Chipset Manufacturer: Intel
- Standard Memory: 32 GB
- Maximum Memory Supported: 1.50 TB
- Memory Technology: DDR5 SDRAM
- Number of Occupied Memory Slots: 2
- Error Checking: ECC
- Signal Processing: Registered (Buffered)
- Total Solid State Drive Capacity: 480 GB
- Solid State Drive Interface: Serial ATA/600
- Controller Model: Front PERC H755 Front Load
- Number of Total Expansion Bays: 8
- Number of Internal 2.5" Bays: 8
- Number of SFF Bays: 8
- PCI Express Details: 1 CPU Configuration: Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5); 2 CPU configuration: Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5)
- Riser Card: Riser Config 3, Low Profile, 1x16 LP Slots (Gen4)
- Ethernet Technology: Gigabit Ethernet
- Total Number of USB Ports: 3
- Number of USB 2.0 Ports: 2
- Number of USB 3.0 Ports: 1
- Network (RJ-45): Yes
- VGA: Yes
- Remote Management: Yes
- Remote Management Controller: iDRAC9, Datacenter 16G
- Operating System Supported: Ubuntu Server, Hyper-V, Windows Server, Red Hat Enterprise Linux, SuSE Linux Enterprise Server
- Input Voltage: 120 V AC, 230 V AC
- Number of Power Supplies Installed: 2
- Plug/Connector Type: NEMA 5-15P to C13
- Maximum Power Supply Wattage: 800 W
- Redundant Power Supply: Yes
- Hot Swappable Power Supply: Yes
- Package Contents:
PowerEdge R660xs Server, 2 X NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America, ReadyRails A11 drop-in/stab-in Slide Combo Rails Without Cable Management Arm, PowerEdge R660xs, 8x2.5, Short Drive Shipping Material, - Security Features:
Cryptographically signed firmware, Data at Rest Encryption (SEDs with local or external key mgmt), Secure Boot, Secure Erase, Secured Component Verification (Hardware integrity check), Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter), TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ, - Form Factor: Rack-mountable
- Rack Height: 1U
- Height: 1.7"
- Width: 19"
- Depth: 29.5"
- Weight (Approximate): 42.88 lb
- Limited Warranty: 40 Month
- Additional Warranty Information:
Next Bus. Day 39MO(Disti SNS), 39 Month(s), Next Bus. Day (Disti SNS), 40 Month(s),
|
|
|
|
|
|
|
