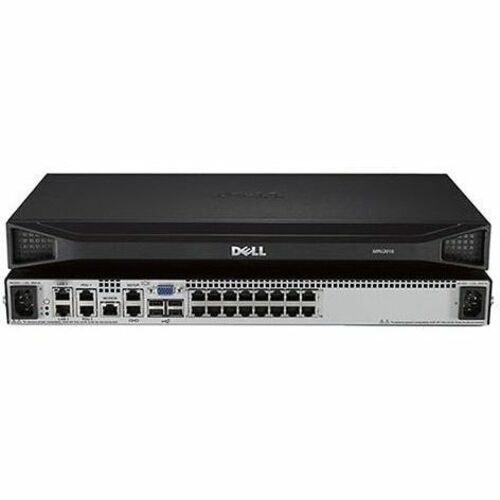

From a single central console, the Dell Digital KVM switch, engineered by Avocent, provides out-of-band access to devices in the rack even when the network is down or when the device OS crashes. Unlike software alternatives, digital KVMs are uniquely capable of bringing a new server up from bare metal, diagnosing and restoring a failing device, updating firmware or enabling BIOS-level access, and patching a device independent of the state of the managed device or network. The Digital switches give users the ability to securely access manage traditional servers remotely via their keyboard, video and mouse ports as well as the ability to manage these servers, and other devices like storage heads or network switches, regardless of whether the server or network is up and running. Devices are accessed either via a modem connection or over a TCP/IP network. These connections support DES, 3DES, AES or 128-bit SSL encryption of both KVM and Virtual Media sessions. - Advanced remote management
- Meet service level agreements and minimize downtime
- Virtual media
- CAC/Smart card support
- Enhanced serial adapters
- Power device port
-
General Information
Manufacturer: Dell Technologies Manufacturer Part Number: A7546774 Manufacturer Website Address: http://www.delltechnologies.com Brand Name: Dell Product Name: 16-port Digital KVM Switch - 2 IP users - TAA Compliant Marketing Information: From a single central console, the Dell Digital KVM switch, engineered by Avocent, provides out-of-band access to devices in the rack even when the network is down or when the device OS crashes. Unlike software alternatives, digital KVMs are uniquely capable of bringing a new server up from bare metal, diagnosing and restoring a failing device, updating firmware or enabling BIOS-level access, and patching a device independent of the state of the managed device or network. The Digital switches give users the ability to securely access manage traditional servers remotely via their keyboard, video and mouse ports as well as the ability to manage these servers, and other devices like storage heads or network switches, regardless of whether the server or network is up and running. Devices are accessed either via a modem connection or over a TCP/IP network. These connections support DES, 3DES, AES or 128-bit SSL encryption of both KVM and Virtual Media sessions. - Advanced remote management
- Meet service level agreements and minimize downtime
- Virtual media
- CAC/Smart card support
- Enhanced serial adapters
- Power device port
Product Type: Ethernet Switch Interfaces/Ports
Total Number of Network Ports: 16
Network (RJ-45): Yes
Port/Expansion Slot Details: - 16 x Gigabit Ethernet KVM RJ-45 Network Port
- 1 x VGA HD-15 Port
- 3 x USB Type A Port
- 1 x RJ-45 Management Port
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-T
Maximum Data Transfer Rate: 125 MB/s
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Input Voltage: - 120 V AC
- 230 V AC
Power Source: Power Supply
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 2
Power Consumption: 18 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7"
Width: 17"
Depth: 9.2"
Weight (Approximate): 8.60 lb
Miscellaneous
TAA Compliant: Yes
 Dedicated account managers are available to assist you with purchasing and presales questions at 877-712-2230 Monday through Friday 8-5pm. What Forms Of Payment Do We Take?We accept all forms of payment including Visa, Mastercard, American Express, Discover, Wire Transfer, and Check in Advance. Purchase orders are accepted and net terms are given based on a credit check. Why Buy From ITO?ITO Solutions, Inc. purpose is to provide you, our client, with best in class technology solutions to help you run your network efficiently by leveraging our integrity, partnerships, and years of experience within the IT industry. Our account managers are here to answer your questions and provide you with solutions very effectively.
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Key Features
Product Description
From a single central console, the Dell Digital KVM switch, engineered by Avocent, provides out-of-band access to devices in the rack even when the network is down or when the device OS crashes. Unlike software alternatives, digital KVMs are uniquely capable of bringing a new server up from bare metal, diagnosing and restoring a failing device, updating firmware or enabling BIOS-level access, and patching a device independent of the state of the managed device or network. The Digital switches give users the ability to securely access manage traditional servers remotely via their keyboard, video and mouse ports as well as the ability to manage these servers, and other devices like storage heads or network switches, regardless of whether the server or network is up and running. Devices are accessed either via a modem connection or over a TCP/IP network. These connections support DES, 3DES, AES or 128-bit SSL encryption of both KVM and Virtual Media sessions. - Advanced remote management
- Meet service level agreements and minimize downtime
- Virtual media
- CAC/Smart card support
- Enhanced serial adapters
- Power device port
- Total Number of Network Ports: 16
- Network (RJ-45): Yes
- Port/Expansion Slot Details: 16 x Gigabit Ethernet KVM RJ-45 Network Port, 1 x VGA HD-15 Port, 3 x USB Type A Port, 1 x RJ-45 Management Port
- Media Type Supported: Twisted Pair
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 1000Base-T
- Maximum Data Transfer Rate: 125 MB/s
- Layer Supported: 2
- Manageable: Yes
- Input Voltage: 120 V AC, 230 V AC
- Power Source: Power Supply
- Number of Power Supplies Supported: 2
- Number of Power Supplies Installed: 2
- Power Consumption: 18 W
- Compatible Rack Unit: 1U
- Form Factor: Rack-mountable
- Height: 1.7"
- Width: 17"
- Depth: 9.2"
- Weight (Approximate): 8.60 lb
- TAA Compliant: Yes
|
|
|
|
|
|
|
