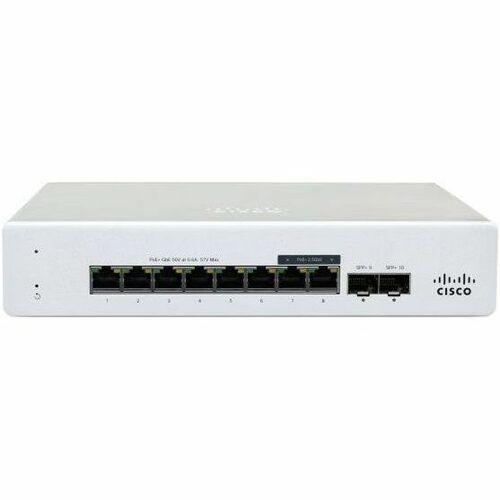

MS130-8P Cisco Meraki MS130-8P Ethernet Switch

Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options designed to meet the diverse needs of branch and campus deployments.

With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.

• General Information

  ---

  Manufacturer: Cisco Systems, Inc
  Manufacturer Part Number: MS130-8P
  Manufacturer Website Address: http://www.cisco.com
  Brand Name: Cisco Meraki
  Product Series: MS130
  Product Model: MS130-8P
  Product Name: MS130-8P Ethernet Switch
  Marketing Information:

  Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options designed to meet the diverse needs of branch and campus deployments.

  With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.


  Packaged Quantity: 1
  Product Type: Ethernet Switch

  Technical Information

  ---

  Features:
• Zero-Touch Provisioning (ZTP)
• DHCP Relay
• DHCP Snooping
• Access Control List
• Automatic Firmware Upgrade
• VLAN Segmentation
• Fanless

Interfaces/Ports

---

Total Number of Network Ports: 8
Network (RJ-45): Yes
Uplink Port: Yes
Port/Expansion Slot Details:

8 x Gigabit Ethernet PoE++

2 x Gigabit Ethernet Expansion Slot

Media & Performance

---

Media Type Supported:

Twisted Pair

Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:

1000Base-T

1000Base-X

Maximum Data Transfer Rate: 128 MB/s

I/O Expansions

---

Total Number of Expansion Slots: 2
Expansion Slot Type: SFP
Number of SFP Slots: 2

Network & Communication

---

Layer Supported: 2
Networking Standards:

IEEE 802.1Q

IEEE 802.1x

IEEE 802.3af

IEEE 802.3at

IEEE 802.3bt

Management & Protocols

---

Manageable: Yes

Power Description

---

PoE (RJ-45) Port: Yes
PoE Budget: 120 W
Input Voltage: 54 V DC
Power Source: Power Supply
Power Consumption: 128 W

Physical Characteristics

---

Product Color: White
Form Factor:

Desktop

Wall Mountable

Height: 1.1"
Width: 6"
Depth: 8.7"
Weight (Approximate): 1.94 lb

Miscellaneous

---

Package Contents:

• MS130-8P Ethernet Switch
• AC Power Supply

Energy Star: No
TCO Certified: No

Warranty

---

Limited Warranty: Lifetime
