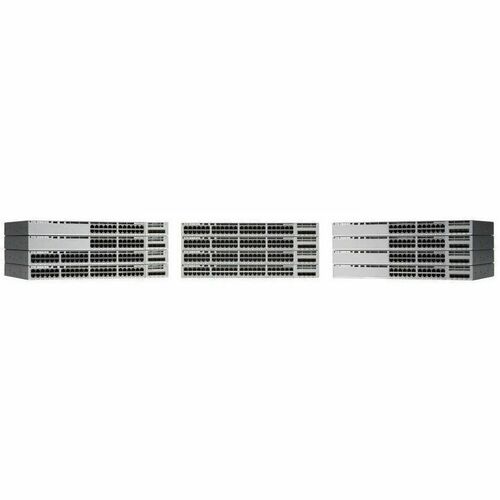

The Catalyst 9200L-M meets the demands of enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. It supports high-bandwidth applications and high-speed Wi-Fi access points with multigigabit ports and 80GB stacking. It offers either four fixed 1G/10G or two fixed 25G uplinks. The switch delivers resiliency through fast stack convergence. It uses Adaptive Policy with an over-the-wire tag to segment traffic into security groups, providing scalable security. Integrated with the Meraki dashboard, the Catalyst 9200L-M offers a simple yet powerful solution for demanding wired access applications. Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as "IOT device" & "Guest." The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group's traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.
-
General Information
Manufacturer: Cisco Systems, Inc Manufacturer Part Number: C9200L-24P-4X-M Manufacturer Website Address: http://www.cisco.com Brand Name: Cisco Meraki Product Line: Catalyst Product Series: 9200L Product Model: C9200L-24P-4X-M Product Name: Catalyst C9200L-24P-4X-M Ethernet Switch Marketing Information: The Catalyst 9200L-M meets the demands of enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. It supports high-bandwidth applications and high-speed Wi-Fi access points with multigigabit ports and 80GB stacking. It offers either four fixed 1G/10G or two fixed 25G uplinks. The switch delivers resiliency through fast stack convergence. It uses Adaptive Policy with an over-the-wire tag to segment traffic into security groups, providing scalable security. Integrated with the Meraki dashboard, the Catalyst 9200L-M offers a simple yet powerful solution for demanding wired access applications. Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as "IOT device" & "Guest." The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group's traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.
Product Type: Ethernet Switch Technical Information
Features: - Access Control List
- Hot-swappable
- Broadcast Storm Control
- DHCP Relay
- DHCP Snooping
- Dynamic ARP Inspection
Interfaces/Ports
Total Number of Network Ports: 24
Network (RJ-45): Yes
Uplink Port: Yes
Stack Port: Yes
Port/Expansion Slot Details: - 24 x Gigabit Ethernet PoE+ Network Port
- 4 x Gigabit Ethernet SFP+ Expansion Slot
- 1 x Management Port
- 2 x Stacking Port
Media & Performance
Media Type Supported: - Twisted Pair
- Optical Fiber
Ethernet Technology: - Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology: - 1000Base-T
- 1000Base-X
- 10GBase-X
Maximum Data Transfer Rate: 1.25 GB/s
I/O Expansions
Total Number of Expansion Slots: 4
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Networking Standards: - IEEE 802.3at
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1ab
- IEEE 802.3ad
- IEEE 802.1x
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
Power Source: - Power Supply
- AC
Redundant Power Supply Supported: Yes
Number of Power Supplies Installed: 1
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7"
Width: 17.5"
Depth: 12.9"
Weight (Approximate): 10.38 lb
Miscellaneous
Package Contents: - Catalyst C9200L-24P-4X-M Ethernet Switch
- 1 x Power Supply
- Rack Mount Brackets
- 2 x Pre-Installed Fans.
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 5 Warranty
Limited Warranty: Lifetime
 Dedicated account managers are available to assist you with purchasing and presales questions at 877-712-2230 Monday through Friday 8-5pm. What Forms Of Payment Do We Take?We accept all forms of payment including Visa, Mastercard, American Express, Discover, Wire Transfer, and Check in Advance. Purchase orders are accepted and net terms are given based on a credit check. Why Buy From ITO?ITO Solutions, Inc. purpose is to provide you, our client, with best in class technology solutions to help you run your network efficiently by leveraging our integrity, partnerships, and years of experience within the IT industry. Our account managers are here to answer your questions and provide you with solutions very effectively.
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Key Features
Product Description
The Catalyst 9200L-M meets the demands of enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. It supports high-bandwidth applications and high-speed Wi-Fi access points with multigigabit ports and 80GB stacking. It offers either four fixed 1G/10G or two fixed 25G uplinks. The switch delivers resiliency through fast stack convergence. It uses Adaptive Policy with an over-the-wire tag to segment traffic into security groups, providing scalable security. Integrated with the Meraki dashboard, the Catalyst 9200L-M offers a simple yet powerful solution for demanding wired access applications. Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as "IOT device" & "Guest." The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group's traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.
- Features: Access Control List, Hot-swappable, Broadcast Storm Control, DHCP Relay, DHCP Snooping, Dynamic ARP Inspection
- Total Number of Network Ports: 24
- Network (RJ-45): Yes
- Uplink Port: Yes
- Stack Port: Yes
- Port/Expansion Slot Details: 24 x Gigabit Ethernet PoE+ Network Port, 4 x Gigabit Ethernet SFP+ Expansion Slot, 1 x Management Port, 2 x Stacking Port
- Media Type Supported: Twisted Pair, Optical Fiber
- Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet
- Network Technology: 1000Base-T, 1000Base-X, 10GBase-X
- Maximum Data Transfer Rate: 1.25 GB/s
- Total Number of Expansion Slots: 4
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 4
- Layer Supported: 3
- Networking Standards: IEEE 802.3at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.1x
- Manageable: Yes
- PoE (RJ-45) Port: Yes
- Power Source: Power Supply, AC
- Redundant Power Supply Supported: Yes
- Number of Power Supplies Installed: 1
- Compatible Rack Unit: 1U
- Form Factor: Rack-mountable
- Height: 1.7"
- Width: 17.5"
- Depth: 12.9"
- Weight (Approximate): 10.38 lb
- Package Contents:
Catalyst C9200L-24P-4X-M Ethernet Switch,1 x Power Supply,Rack Mount Brackets,2 x Pre-Installed Fans., - Environmental Compliance: Restriction of Hazardous Substances (RoHS) 5
- Limited Warranty: Lifetime
|
|
|
|
|
|
|
