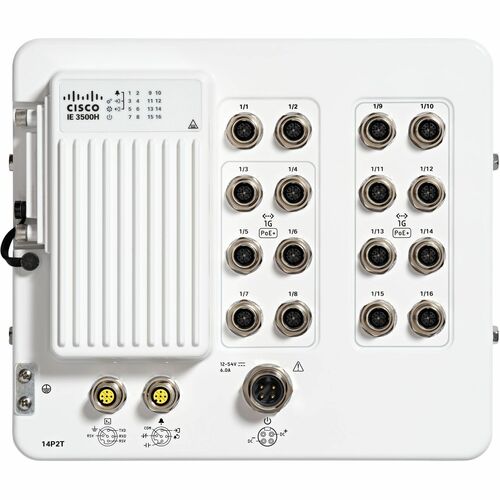

The Cisco IE3500 Heavy Duty Series (IE3500H) switches deliver high bandwidth, high power and better switching performance in a dustproof and waterproof form factor. The Cisco IE3500 Heavy Duty Series is designed to support features that enable the industrial network infrastructure to seamlessly accommodate machine vision use cases, AI-driven analysis, virtualization, and robust security for Operational Technology (OT) networks. Advanced Features for Operational Technology (OT) Networks - TSN Frame-Preemption: With IEEE802.1Qbu and IEEE802.3br based frame-preemption technology, the IE3500H significantly reduces jitter and delay in transmission of time-sensitive control traffic in OT networks.
- Enhanced Resiliency:The IE3500H supports protocols such as Media Redundancy Protocol (MRP), Resilient Ethernet Protocol (REP), and Device Level Ring (DLR), providing redundancy and fast failover times.
- Lossless Redundancy:For deployments requiring uninterrupted connectivity, the IE3505H includes High-Availability Seamless Redundancy (HSR) and Parallel Redundancy Protocol (PRP), ensuring seamless failover and network continuity.
Network Security and Observability - Secure Boot: The IE3500H features Secure Boot designed to ensure that only trusted and authenticated software is executed during the boot process, with its hardware-anchored root of trust in Cisco Trust Anchor Module.
- Cyber visibility: Cisco Cyber Vision built-into the IE3500H identifies connected assets, their profiles, vulnerabilities, and communication patterns to assess your OT security posture and help drive cybersecurity best practices.
- Secure remote access: Cisco Secure Equipment Access built-into the IE3500H enables zero-trust remote access to connected assets.
- Segmentation: Cisco TrustSec technology enables policy-based segmentation that helps reduce attack surfaces and contains threats by automatically adapting access based on user and device identity.
- Network Assurance:IE3500 can host ThousandEyes Enterprise Agent1that gains visibility into owned and third-party network to avoid network outages.
Flexible Management Options The IE3500H offers multiple management choices to suit various deployment needs: - On-Device Management: Use the WebUI or command line tool for standalone devices, providing an intuitive on-device GUI.
- On-Premises Management: Manage the IE3500H via Catalyst Center for on-premise deployments.
-
General Information
Manufacturer: Cisco Systems, Inc Manufacturer Part Number: IE-3500H-14P2T-A Manufacturer Website Address: http://www.cisco.com Brand Name: Cisco Product Series: IE3500 Product Model: IE-3500H-14P2T Product Name: IE-3500H-14P2T Ethernet Switch Marketing Information: The Cisco IE3500 Heavy Duty Series (IE3500H) switches deliver high bandwidth, high power and better switching performance in a dustproof and waterproof form factor. The Cisco IE3500 Heavy Duty Series is designed to support features that enable the industrial network infrastructure to seamlessly accommodate machine vision use cases, AI-driven analysis, virtualization, and robust security for Operational Technology (OT) networks. Advanced Features for Operational Technology (OT) Networks - TSN Frame-Preemption: With IEEE802.1Qbu and IEEE802.3br based frame-preemption technology, the IE3500H significantly reduces jitter and delay in transmission of time-sensitive control traffic in OT networks.
- Enhanced Resiliency:The IE3500H supports protocols such as Media Redundancy Protocol (MRP), Resilient Ethernet Protocol (REP), and Device Level Ring (DLR), providing redundancy and fast failover times.
- Lossless Redundancy:For deployments requiring uninterrupted connectivity, the IE3505H includes High-Availability Seamless Redundancy (HSR) and Parallel Redundancy Protocol (PRP), ensuring seamless failover and network continuity.
Network Security and Observability - Secure Boot: The IE3500H features Secure Boot designed to ensure that only trusted and authenticated software is executed during the boot process, with its hardware-anchored root of trust in Cisco Trust Anchor Module.
- Cyber visibility: Cisco Cyber Vision built-into the IE3500H identifies connected assets, their profiles, vulnerabilities, and communication patterns to assess your OT security posture and help drive cybersecurity best practices.
- Secure remote access: Cisco Secure Equipment Access built-into the IE3500H enables zero-trust remote access to connected assets.
- Segmentation: Cisco TrustSec technology enables policy-based segmentation that helps reduce attack surfaces and contains threats by automatically adapting access based on user and device identity.
- Network Assurance:IE3500 can host ThousandEyes Enterprise Agent1that gains visibility into owned and third-party network to avoid network outages.
Flexible Management Options The IE3500H offers multiple management choices to suit various deployment needs: - On-Device Management: Use the WebUI or command line tool for standalone devices, providing an intuitive on-device GUI.
- On-Premises Management: Manage the IE3500H via Catalyst Center for on-premise deployments.
Product Type: Ethernet Switch Technical Information
Features: - IP66
- IP67
- DHCP Snooping
- Dynamic ARP Inspection
- Broadcast Storm Control
- DHCP Relay
- Unicast Storm Control
- Multicast Storm Control
Interfaces/Ports
Port/Expansion Slot Details: - 14 x Gigabit Ethernet PoE+
- 2 x Gigabit Ethernet M12 X-Code Port
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Maximum Data Transfer Rate: 128 MB/s
Network & Communication
Layer Supported: 2
Networking Standards: - IEEE 802.1Q
- IEEE 802.1w
- IEEE 802.1ab
- IEEE 802.1s
- IEEE 802.3ad
- IEEE 802.3br
- IEEE 802.1Qbu
- IEEE 802.1ae
- IEEE 802.1D
- IEEE 802.1p
- IEEE 802.3x
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 240 W
Input Voltage: - 12 V DC
- 54 V DC
- 44 V DC
Power Source: DC
Power Consumption: 45 W
Physical Characteristics
Form Factor: Wall Mountable
Height: 9.6"
Width: 10.9"
Depth: 3.2"
Weight (Approximate): 11.24 lb
Miscellaneous
Environmental Compliance: - Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
 Dedicated account managers are available to assist you with purchasing and presales questions at 877-712-2230 Monday through Friday 8-5pm. What Forms Of Payment Do We Take?We accept all forms of payment including Visa, Mastercard, American Express, Discover, Wire Transfer, and Check in Advance. Purchase orders are accepted and net terms are given based on a credit check. Why Buy From ITO?ITO Solutions, Inc. purpose is to provide you, our client, with best in class technology solutions to help you run your network efficiently by leveraging our integrity, partnerships, and years of experience within the IT industry. Our account managers are here to answer your questions and provide you with solutions very effectively.
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Key Features
Product Description
The Cisco IE3500 Heavy Duty Series (IE3500H) switches deliver high bandwidth, high power and better switching performance in a dustproof and waterproof form factor. The Cisco IE3500 Heavy Duty Series is designed to support features that enable the industrial network infrastructure to seamlessly accommodate machine vision use cases, AI-driven analysis, virtualization, and robust security for Operational Technology (OT) networks. Advanced Features for Operational Technology (OT) Networks - TSN Frame-Preemption: With IEEE802.1Qbu and IEEE802.3br based frame-preemption technology, the IE3500H significantly reduces jitter and delay in transmission of time-sensitive control traffic in OT networks.
- Enhanced Resiliency:The IE3500H supports protocols such as Media Redundancy Protocol (MRP), Resilient Ethernet Protocol (REP), and Device Level Ring (DLR), providing redundancy and fast failover times.
- Lossless Redundancy:For deployments requiring uninterrupted connectivity, the IE3505H includes High-Availability Seamless Redundancy (HSR) and Parallel Redundancy Protocol (PRP), ensuring seamless failover and network continuity.
Network Security and Observability - Secure Boot: The IE3500H features Secure Boot designed to ensure that only trusted and authenticated software is executed during the boot process, with its hardware-anchored root of trust in Cisco Trust Anchor Module.
- Cyber visibility: Cisco Cyber Vision built-into the IE3500H identifies connected assets, their profiles, vulnerabilities, and communication patterns to assess your OT security posture and help drive cybersecurity best practices.
- Secure remote access: Cisco Secure Equipment Access built-into the IE3500H enables zero-trust remote access to connected assets.
- Segmentation: Cisco TrustSec technology enables policy-based segmentation that helps reduce attack surfaces and contains threats by automatically adapting access based on user and device identity.
- Network Assurance:IE3500 can host ThousandEyes Enterprise Agent1that gains visibility into owned and third-party network to avoid network outages.
Flexible Management Options The IE3500H offers multiple management choices to suit various deployment needs: - On-Device Management: Use the WebUI or command line tool for standalone devices, providing an intuitive on-device GUI.
- On-Premises Management: Manage the IE3500H via Catalyst Center for on-premise deployments.
- Features: IP66, IP67, DHCP Snooping, Dynamic ARP Inspection, Broadcast Storm Control, DHCP Relay, Unicast Storm Control, Multicast Storm Control
- Port/Expansion Slot Details: 14 x Gigabit Ethernet PoE+, 2 x Gigabit Ethernet M12 X-Code Port
- Media Type Supported: Twisted Pair
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10/100/1000Base-T
- Maximum Data Transfer Rate: 128 MB/s
- Layer Supported: 2
- Networking Standards: IEEE 802.1Q, IEEE 802.1w, IEEE 802.1ab, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3br, IEEE 802.1Qbu, IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
- Manageable: Yes
- PoE (RJ-45) Port: Yes
- PoE Budget: 240 W
- Input Voltage: 12 V DC, 54 V DC, 44 V DC
- Power Source: DC
- Power Consumption: 45 W
- Form Factor: Wall Mountable
- Height: 9.6"
- Width: 10.9"
- Depth: 3.2"
- Weight (Approximate): 11.24 lb
- Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
- Limited Warranty: 5 Year
|
|
|
|
|
|
|
