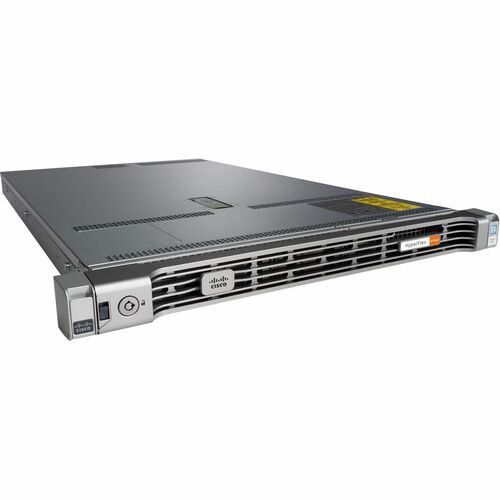

HX-SP-220M4SBP1-1A Cisco HyperFlex HX220c M4 1U Rack Server - 2 x Intel Xeon E5-2690 v4 2.60 GHz - 512 GB RAM - 12Gb/s SAS Controller

Fast and Flexible Hyperconverged Systems

You need systems that can adapt to match the speed of your business. Cisco HyperFlex™ Systems deliver complete hyperconvergence, combining software-defined networking and computing with the next-generation Cisco HyperFlex HX Data Platform. Engineered on the Cisco Unified Computing System™ (Cisco UCS®), Cisco HyperFlex Systems deliver the operational requirements for agility, scalability, and pay-as-you-grow economics of the cloud-but with the benefits of on-premises infrastructure.

• General Information

  ---

  Manufacturer: Cisco Systems, Inc
  Manufacturer Part Number: HX-SP-220M4SBP1-1A
  Manufacturer Website Address: http://www.cisco.com
  Brand Name: Cisco
  Product Line: HyperFlex
  Product Series: HX220c M4
  Product Name: HyperFlex HX220c M4 Server
  Marketing Information:

  Fast and Flexible Hyperconverged Systems

  You need systems that can adapt to match the speed of your business. Cisco HyperFlex™ Systems deliver complete hyperconvergence, combining software-defined networking and computing with the next-generation Cisco HyperFlex HX Data Platform. Engineered on the Cisco Unified Computing System™ (Cisco UCS®), Cisco HyperFlex Systems deliver the operational requirements for agility, scalability, and pay-as-you-grow economics of the cloud-but with the benefits of on-premises infrastructure.


  Product Type: Server

  Processor

  ---

  Number of Processors Supported: 2
  Number of Processors Installed: 2
  Processor Manufacturer: Intel
  Processor Type: Xeon
  Processor Model: E5-2690 v4
  Processor Core: Tetradeca-core (14 Core)
  Processor Speed: 2.60 GHz
  Cache: 35 MB

  Chipset

  ---

  Chipset Manufacturer: Intel
  Chipset Model: C610

  Memory

  ---

  Standard Memory: 512 GB
  Maximum Memory Supported: 1.50 TB
  Memory Technology: DDR4 SDRAM
  Total Number of Memory Slots: 24
  Number of Occupied Memory Slots: 16
  Error Checking: ECC
  Signal Processing: Registered (Buffered)

  Controllers

  ---

  Controller Type: 12Gb/s SAS
  RAID Supported: No

  I/O Expansions

  ---

  Number of Total Expansion Bays: 8
  Number of Internal 2.5" Bays: 8
  Number of SFF Bays: 8
  Hot Swappable Bays: Yes
  Total Number of Expansion Slots: 2
  PCI Express x16 (Gen 3.x) Slots: 2
  PCI Express Details: Two PCIe 3.0 slots
  Riser Card: Riser 1: 1 full-height, 3/4-length slot with x24 connector and x16 lane; Riser 2: 1 half-height, half-length slot with x24 connector and x16 lane

  Display & Graphics

  ---

  Graphics Controller Manufacturer: Matrox
  Graphics Controller Model: G200e
  Graphics Memory Capacity: 8 MB

  Network & Communication

  ---

  Ethernet Technology: Gigabit Ethernet

  Interfaces/Ports

  ---

  Total Number of USB Ports: 2
  Number of USB 3.0 Ports: 2
  Network (RJ-45): Yes
  Number of Network (RJ-45) Ports: 2
  VGA: Yes
  Remote Management: Yes
  Remote Management Controller: Integrated baseboard management controller (BMC)

  Power Description

  ---

  Input Voltage:
• 120 V AC
• 230 V AC
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 770 W
Redundant Power Supply: Yes
Hot Swappable Power Supply: Yes

Miscellaneous

---

Security Features:

• Trusted Platform Module (TPM), a chip (microcontroller) that can securely store artifacts, including passwords, certificates, and encryption keys, that are used to authenticate the platform (node); TPM 1.2 SPI is supported
• Locking bezel option to protect against unauthorized access to disk drives

Physical Characteristics

---

Form Factor: Rack
Rack Height: 1U
Height: 1.7"
Width: 19"
Depth: 31"
Weight (Approximate): 37.92 lb

Warranty

---

Limited Warranty: 3 Year
Additional Warranty Information:

• Three-year parts coverage.
• Next business day (NBD) onsite parts replacement eight hours a day, five days a week.
• 90-day software warranty on media.
• 3yrSW
