C9300L-24UXG4X-EDU Cisco Catalyst 9300L-24UXG-4X Ethernet Switch


C9300L-24UXG4X-EDU



Your Price: $6,059.39

Availability:In Stock
Mfg. Part:: C9300L-24UXG4X-EDU
quantity:

Overview Technical Specifications Why Choose Us to Buy


Built for security, IoT, mobility, and cloud

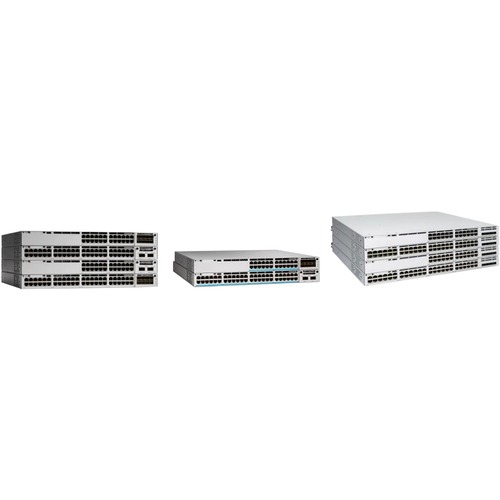

The Cisco® Catalyst® 9300 Series switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At up to 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS® XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.

The Foundation of software-Defined access

Advanced persistent security threats. The exponential growth of Internet of Things (IoT) devices. Mobility everywhere. Cloud adoption. All of these require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating the rollout of business services.

The Cisco Digital Network Architecture (Cisco DNA) with Software-Defined Access (SD-Access) is the network fabric that powers business. It is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities. These include:

  • Simplified device deployment
  • Unified management of wired and wireless networks
  • Network virtualization and segmentation
  • Group-based policies
  • Context-based analytics

Cisco DNA software

Cisco DNA Software offers a valuable and flexible way to buy software for the access, WAN, and data center domains. At each stage in the product lifecycle, Cisco DNA Software helps make buying, managing, and upgrading your network and infrastructure software easier. Cisco DNA Software provides:

  • Flexible licensing models to smoothly distribute customers' software spending over time
  • Investment protection for software purchases through software services-enabled license portability
  • Access to updates, upgrades, and new technology from Cisco through Cisco®Software Support Services (SWSS)
  • Lower cost of entry with the new Cisco DNA Subscription for Switching model
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
  • Ethernet Technology:
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
  • Network Technology:
  • 10GBase-T
  • 10GBase-X
  • I/O Expansions
    Number of Total Expansion Slots: 4
    Expansion Slot Type: Uplink Module
    Network & Communication
    Layer Supported: 3
    Management & Protocols
    Manageable: Yes
    Power Description
    PoE (RJ-45) Port: Yes
    PoE Budget: 880 W
    Input Voltage:
  • 120 V AC
  • 230 V AC
  • Power Source: Power Supply
    Redundant Power Supply Supported: Yes
    Number of Power Supplies Supported: 2
    Number of Power Supplies Installed: 1
    Power Consumption: 1100 W
    Plug/Connector Type:
  • IEC 60320 C16
  • IEC 60320 C14
  • C15
  • Physical Characteristics
    Form Factor: Rack-mountable
    Height: 1.7"
    Width: 17.5"
    Depth: 19.2"
    Weight (Approximate): 15.72 lb
    Miscellaneous
    Package Contents:
    • Catalyst 9300L-24UXG-4X Ethernet Switch
    • Power Supply
    • 3 x Field-replaceable Fans

    Energy Star: Yes
    Environmentally Friendly: Yes
    Environmental Certification:
  • RoHS-5
  • WEEE
  • Country of Origin: Mexico
    Warranty
    Limited Warranty: Lifetime
    Key Features


    • Product Description

      Built for security, IoT, mobility, and cloud

      The Cisco® Catalyst® 9300 Series switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At up to 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

      The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS® XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.

      The Foundation of software-Defined access

      Advanced persistent security threats. The exponential growth of Internet of Things (IoT) devices. Mobility everywhere. Cloud adoption. All of these require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating the rollout of business services.

      The Cisco Digital Network Architecture (Cisco DNA) with Software-Defined Access (SD-Access) is the network fabric that powers business. It is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities. These include:

      • Simplified device deployment
      • Unified management of wired and wireless networks
      • Network virtualization and segmentation
      • Group-based policies
      • Context-based analytics

      Cisco DNA software

      Cisco DNA Software offers a valuable and flexible way to buy software for the access, WAN, and data center domains. At each stage in the product lifecycle, Cisco DNA Software helps make buying, managing, and upgrading your network and infrastructure software easier. Cisco DNA Software provides:

      • Flexible licensing models to smoothly distribute customers' software spending over time
      • Investment protection for software purchases through software services-enabled license portability
      • Access to updates, upgrades, and new technology from Cisco through Cisco®Software Support Services (SWSS)
      • Lower cost of entry with the new Cisco DNA Subscription for Switching model

    • Total Number of Network Ports: 24
    • Uplink Port: Yes
    • Modular: Yes
    • Stack Port: Yes
    • Port/Expansion Slot Details: 8 x 10 Gigabit Ethernet UPoE, 16 x Gigabit Ethernet Network, 4 x 10 Gigabit Ethernet Uplink
    • Media Type Supported: Optical Fiber, Twisted Pair
    • Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet
    • Network Technology: 10GBase-T, 10GBase-X
    • Number of Total Expansion Slots: 4
    • Expansion Slot Type: Uplink Module
    • Layer Supported: 3
    • Manageable: Yes
    • PoE (RJ-45) Port: Yes
    • PoE Budget: 880 W
    • Input Voltage: 120 V AC, 230 V AC
    • Power Source: Power Supply
    • Redundant Power Supply Supported: Yes
    • Number of Power Supplies Supported: 2
    • Number of Power Supplies Installed: 1
    • Power Consumption: 1100 W
    • Plug/Connector Type: IEC 60320 C16, IEC 60320 C14, C15
    • Form Factor: Rack-mountable
    • Height: 1.7"
    • Width: 17.5"
    • Depth: 19.2"
    • Weight (Approximate): 15.72 lb
    • Package Contents:
        Catalyst 9300L-24UXG-4X Ethernet Switch, Power Supply, 3 x Field-replaceable Fans,
    • Energy Star: Yes
    • Environmentally Friendly: Yes
    • Environmental Certification: RoHS-5, WEEE
    • Country of Origin: Mexico
    • Limited Warranty: Lifetime
