UCSC-C3X60-SVRN8 Cisco C3160 4U Rack Server - 2 x Intel Xeon E5-2620 v2 2.10 GHz - 256 GB RAM - 240 GB SSD - (2 x 120GB) SSD Configuration - 12Gb/s SAS, Serial ATA/600 Controller

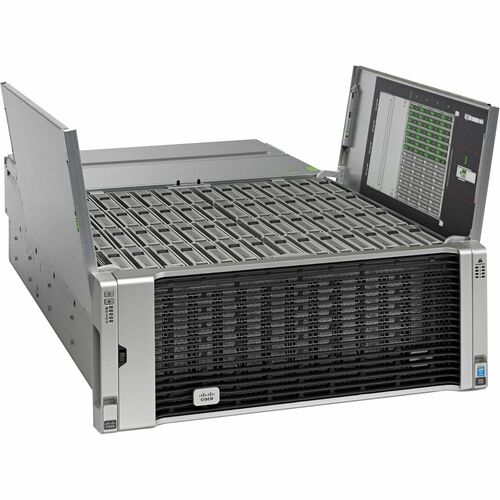

The Cisco UCS C3160 is a modular, dense storage rack server, optimized for large datasets used in environments such as cloud, object storage and content delivery.

• General Information

  ---

  Manufacturer: Cisco Systems, Inc
  Manufacturer Part Number: UCSCC3X60SVRN8
  Manufacturer Website Address: http://www.cisco.com
  Brand Name: Cisco
  Product Series: C3160
  Product Name: UCSC C3X60 Server
  Marketing Information:

  The Cisco UCS C3160 is a modular, dense storage rack server, optimized for large datasets used in environments such as cloud, object storage and content delivery.


  Product Type: Server

  Processor

  ---

  Number of Processors Supported: 2
  Number of Processors Installed: 2
  Processor Manufacturer: Intel
  Processor Type: Xeon
  Processor Model: E5-2620 v2
  Processor Core: Hexa-core (6 Core)
  Processor Speed: 2.10 GHz
  Cache: 15 MB

  Chipset

  ---

  Chipset Manufacturer: Intel
  Chipset Model: C600

  Memory

  ---

  Standard Memory: 256 GB
  Maximum Memory Supported: 512 GB
  Memory Technology: DDR3L SDRAM
  Memory Clock Speed: 1.87 GHz
  Total Number of Memory Slots: 16
  Number of Occupied Memory Slots: 16
  Error Checking: ECC
  Signal Processing: Registered (Buffered)

  Storage

  ---

  Number of Solid State Drives: 2
  Total Solid State Drive Capacity: 240 GB
  Solid State Drive Interface: Serial ATA

  Controllers

  ---

  Controller Type:
• 12Gb/s SAS
• Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60, JBOD

I/O Expansions

---

Number of Total Expansion Bays: 58
Number of 3.5" Bays: 56
Number of Internal 2.5" Bays: 2
Number of SFF Bays: 2
Number of LFF Bays: 56
Hot Swappable Bays: Yes
Total Number of Expansion Slots: 2

Network & Communication

---

Ethernet Technology: Gigabit Ethernet

Interfaces/Ports

---

Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
VGA: Yes
Remote Management: Yes
Remote Management Controller: Baseboard Management Controller (BMC)

Power Description

---

Input Voltage:

120 V AC

230 V AC

Number of Power Supplies Supported: 4
Number of Power Supplies Installed: 4
Maximum Power Supply Wattage: 1050 W
Redundant Power Supply: Yes
Hot Swappable Power Supply: Yes

Physical Characteristics

---

Form Factor: Rack
Rack Height: 4U
Height: 6.9"
Width: 17.5"
Depth: 32"
Weight (Approximate): 195 lb

Warranty

---

Limited Warranty: 3 Year
Additional Warranty Information:

• Three-year parts coverage.
• Next business day (NBD) onsite parts replacement eight hours a day, five days a week.
• 90-day software warranty on media.
