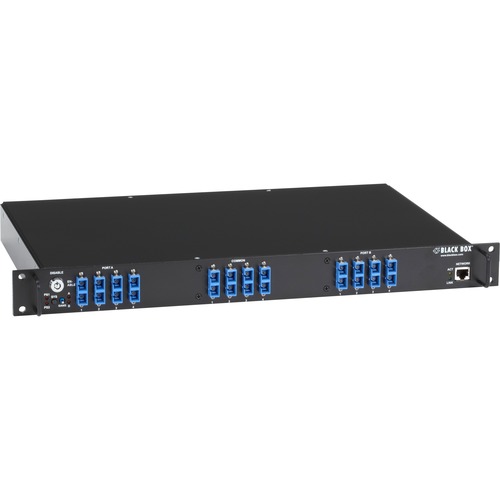

Gang Switch 1U 4 Duplex Multimode SC 19 inch Rackmount Network Manageable. Enables individual or simultaneous (ganged) control of circuits. Switch manually, electronically via a local RS-232 console, or remotely over a TCP/IP network Lockable switch with removable key for securing gang switching control. Features highly reliable micro-mirror optical switching mechanisms. Transparent to data rates, protocols, formats, and signal levels. Supports connections to Gigabit-speed fiber networks. Compact, 1U-high rackmountable chassis. Includes dual power inputs for redundancy. Daisychain multiple units for up to 255 chassis. Use this optical Layer 1 switching system to add network backup and failover switching to fiber connections on your data networks. It's ideal for mission-critical classified government and military networks, broadcast networks, private medical/healthcare systems, and factory/industrial applications. With the Pro Switching System 1U NBS, it's very simple to switch all users from a main network to a backup network. Locally, this is done using a momentary toggle switch on the chassis' front or from a serial RS-232 workstation. But it also supports control from a remote workstation via its 10BASE-T Ethernet port. Through this TCP/IP connection, you can switch and monitor circuits using Telnet, SNMP, or a Web browser lin. The switching system also features auto bypass and auto recovery functions. If the "normal" network paths between the chassis and the device being monitored go down for any reason, the chassis will automatically switch from the normal connection state to the bypass, or failover, connection state Unique latching optical switch mechanisms and micro-mirrors optically route signals between ports. And because the system is fiber based, there's no need to worry about EMI/RFI interfering with signaling in electronically noisy applications.The system uses duplex SC connections for each channel (port) to form bidirectional data paths to your 62.5/125-m multimode network segments. Simply connect fiber cables between the system's circuits and the network connections you want to control. As soon as the fiber cables are plugged into the chassis, the selected data paths become active. Each switching circuit has a common (C) port that's latched to its associated A or B port, which means it transmits signals even if the chassis is without AC power. Because its relays are physically latched into position, once a position is set, it stays set. A key-lockable switch secures the gang switching function. With the key-lock switch in the enabled position, all ports in the Pro Switching System 1U NBS can be simultaneously switched by pressing the momentary toggle switch on the chassis' front. Port settings are also software controllable, so you can toggle a connected device from the A to the B position from a workstation. You not only have reliable network paths, but you can automate switching to control individual settings Need to add ports later? Simply daisychain multiple Pro Switching System 1U NBS chassis together up to 255 in all and control them as a single system.
-
General Information
Manufacturer: Black Box Corporation
Manufacturer Part Number: NBS004MA
Manufacturer Website Address: http://www.blackbox.com
Brand Name: Black Box
Product Name: Rackmount Gang Switch - 19" , 1U, (4) Duplex Multimode SC, Network Manageable
Marketing Information: Gang Switch 1U 4 Duplex Multimode SC 19 inch Rackmount Network Manageable. Enables individual or simultaneous (ganged) control of circuits. Switch manually, electronically via a local RS-232 console, or remotely over a TCP/IP network Lockable switch with removable key for securing gang switching control. Features highly reliable micro-mirror optical switching mechanisms. Transparent to data rates, protocols, formats, and signal levels. Supports connections to Gigabit-speed fiber networks. Compact, 1U-high rackmountable chassis. Includes dual power inputs for redundancy. Daisychain multiple units for up to 255 chassis. Use this optical Layer 1 switching system to add network backup and failover switching to fiber connections on your data networks. It's ideal for mission-critical classified government and military networks, broadcast networks, private medical/healthcare systems, and factory/industrial applications. With the Pro Switching System 1U NBS, it's very simple to switch all users from a main network to a backup network. Locally, this is done using a momentary toggle switch on the chassis' front or from a serial RS-232 workstation. But it also supports control from a remote workstation via its 10BASE-T Ethernet port. Through this TCP/IP connection, you can switch and monitor circuits using Telnet, SNMP, or a Web browser lin. The switching system also features auto bypass and auto recovery functions. If the "normal" network paths between the chassis and the device being monitored go down for any reason, the chassis will automatically switch from the normal connection state to the bypass, or failover, connection state Unique latching optical switch mechanisms and micro-mirrors optically route signals between ports. And because the system is fiber based, there's no need to worry about EMI/RFI interfering with signaling in electronically noisy applications.The system uses duplex SC connections for each channel (port) to form bidirectional data paths to your 62.5/125-m multimode network segments. Simply connect fiber cables between the system's circuits and the network connections you want to control. As soon as the fiber cables are plugged into the chassis, the selected data paths become active. Each switching circuit has a common (C) port that's latched to its associated A or B port, which means it transmits signals even if the chassis is without AC power. Because its relays are physically latched into position, once a position is set, it stays set. A key-lockable switch secures the gang switching function. With the key-lock switch in the enabled position, all ports in the Pro Switching System 1U NBS can be simultaneously switched by pressing the momentary toggle switch on the chassis' front. Port settings are also software controllable, so you can toggle a connected device from the A to the B position from a workstation. You not only have reliable network paths, but you can automate switching to control individual settings Need to add ports later? Simply daisychain multiple Pro Switching System 1U NBS chassis together up to 255 in all and control them as a single system.
Product Condition: New
Product Type: Fibre Channel Switch
Interfaces/Ports
Number of Fibre Channel Ports: 12
Number of Network (RJ-45) Ports: 1
Management & Protocols
Manageable: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.8"
Width: 17.3"
Depth: 10.5"
Weight (Approximate): 5 lb
Miscellaneous
Environmentally Friendly: Yes
Country of Origin: United States
TAA Compliant: Yes
Warranty
Limited Warranty: 1 Year
 Dedicated account managers are available to assist you with purchasing and presales questions at 877-712-2230 Monday through Friday 8-5pm. What Forms Of Payment Do We Take?We accept all forms of payment including Visa, Mastercard, American Express, Discover, Wire Transfer, and Check in Advance. Purchase orders are accepted and net terms are given based on a credit check. Why Buy From ITO?ITO Solutions, Inc. purpose is to provide you, our client, with best in class technology solutions to help you run your network efficiently by leveraging our integrity, partnerships, and years of experience within the IT industry. Our account managers are here to answer your questions and provide you with solutions very effectively.
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Key Features
Product Description
Gang Switch 1U 4 Duplex Multimode SC 19 inch Rackmount Network Manageable. Enables individual or simultaneous (ganged) control of circuits. Switch manually, electronically via a local RS-232 console, or remotely over a TCP/IP network Lockable switch with removable key for securing gang switching control. Features highly reliable micro-mirror optical switching mechanisms. Transparent to data rates, protocols, formats, and signal levels. Supports connections to Gigabit-speed fiber networks. Compact, 1U-high rackmountable chassis. Includes dual power inputs for redundancy. Daisychain multiple units for up to 255 chassis. Use this optical Layer 1 switching system to add network backup and failover switching to fiber connections on your data networks. It's ideal for mission-critical classified government and military networks, broadcast networks, private medical/healthcare systems, and factory/industrial applications. With the Pro Switching System 1U NBS, it's very simple to switch all users from a main network to a backup network. Locally, this is done using a momentary toggle switch on the chassis' front or from a serial RS-232 workstation. But it also supports control from a remote workstation via its 10BASE-T Ethernet port. Through this TCP/IP connection, you can switch and monitor circuits using Telnet, SNMP, or a Web browser lin. The switching system also features auto bypass and auto recovery functions. If the "normal" network paths between the chassis and the device being monitored go down for any reason, the chassis will automatically switch from the normal connection state to the bypass, or failover, connection state Unique latching optical switch mechanisms and micro-mirrors optically route signals between ports. And because the system is fiber based, there's no need to worry about EMI/RFI interfering with signaling in electronically noisy applications.The system uses duplex SC connections for each channel (port) to form bidirectional data paths to your 62.5/125-m multimode network segments. Simply connect fiber cables between the system's circuits and the network connections you want to control. As soon as the fiber cables are plugged into the chassis, the selected data paths become active. Each switching circuit has a common (C) port that's latched to its associated A or B port, which means it transmits signals even if the chassis is without AC power. Because its relays are physically latched into position, once a position is set, it stays set. A key-lockable switch secures the gang switching function. With the key-lock switch in the enabled position, all ports in the Pro Switching System 1U NBS can be simultaneously switched by pressing the momentary toggle switch on the chassis' front. Port settings are also software controllable, so you can toggle a connected device from the A to the B position from a workstation. You not only have reliable network paths, but you can automate switching to control individual settings Need to add ports later? Simply daisychain multiple Pro Switching System 1U NBS chassis together up to 255 in all and control them as a single system.
- Number of Fibre Channel Ports: 12
- Number of Network (RJ-45) Ports: 1
- Manageable: Yes
- Compatible Rack Unit: 1U
- Form Factor: Rack-mountable
- Height: 1.8"
- Width: 17.3"
- Depth: 10.5"
- Weight (Approximate): 5 lb
- Environmentally Friendly: Yes
- Country of Origin: United States
- TAA Compliant: Yes
- Limited Warranty: 1 Year
|
|
|
|
|
|
|
