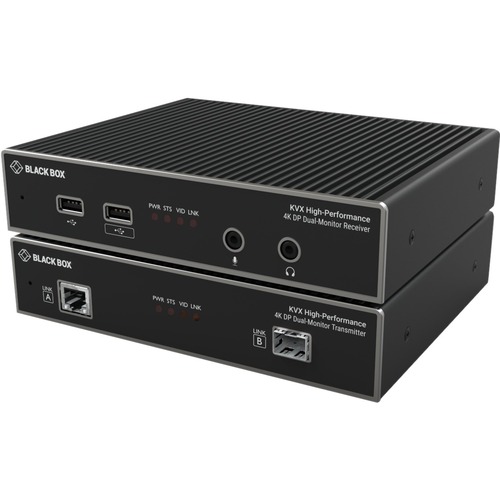

True Plug and play High-Performance point-to-point KVM extension. Using DisplayPort 1.2 KVXHP-200 supports dual monitor setups with up to 4096x2160 @ 60Hz using 8 bits per color, 4:4:4 chroma sampling, and High-Speed Transparent USB 2.0 - all transmitted over a single cable. Whether your requirements are CATx or fiber, KVXHP is equipped to handle both interfaces providing a single solution for all use cases. 19" Rackmount Option
The optional rackmount tray (KVXHP-RMK) holds up to two KVX-HP extender units for quick mounting into any 19" rack and leaves enough space to hold the power supplies and cable management. To concentrate multiple KVM extensions in your rack, use our Central Power Hub solution (ACR1000-CPH8R-R2/ ACR1000-CPH16R-R2) for a clutter-free, space-saving installation in 1RU. The hub powers up to eight or sixteen 12VDC devices replacing multiple single power supplies. Single-head models for two monitor connections or quad-head models with support for four DisplayPort monitors are also available.
-
General Information
Manufacturer: Black Box Corporation Manufacturer Part Number: KVXHP-200 Manufacturer Website Address: http://www.blackbox.com Brand Name: Black Box Product Series: KVXHP Product Model: KVXHP-200 Product Name: KVXHP-200 KVM Extender Marketing Information: True Plug and play High-Performance point-to-point KVM extension. Using DisplayPort 1.2 KVXHP-200 supports dual monitor setups with up to 4096x2160 @ 60Hz using 8 bits per color, 4:4:4 chroma sampling, and High-Speed Transparent USB 2.0 - all transmitted over a single cable. Whether your requirements are CATx or fiber, KVXHP is equipped to handle both interfaces providing a single solution for all use cases. 19" Rackmount Option
The optional rackmount tray (KVXHP-RMK) holds up to two KVX-HP extender units for quick mounting into any 19" rack and leaves enough space to hold the power supplies and cable management. To concentrate multiple KVM extensions in your rack, use our Central Power Hub solution (ACR1000-CPH8R-R2/ ACR1000-CPH16R-R2) for a clutter-free, space-saving installation in 1RU. The hub powers up to eight or sixteen 12VDC devices replacing multiple single power supplies. Single-head models for two monitor connections or quad-head models with support for four DisplayPort monitors are also available. Product Type: KVM Extender Technical Information
Connectivity Technology: Wired
Number of Computers Supported: 2
Number of Local Users Supported: 1
Maximum Operating Distance: 13123.36 ft
Device Type: KVM Extender
Video
Graphic Mode: 4K
Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
Headphone: Yes
Microphone: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 6
Power Description
Input Voltage: 12 V DC
Input Voltage Range: 100-240 VAC
Physical Characteristics
Rack Height: 1U
Form Factor: Rack-mountable
Transmitter Height: 1.54"
Transmitter Width: 7.32"
Transmitter Depth: 5.83"
Receiver Height: 1.54"
Receiver Width: 7.32"
Receiver Depth: 5.83"
Transmitter Weight (Approximate): 2.84 lb
Receiver Weight (Approximate): 2.73 lb
Miscellaneous
Package Contents: - 1 x Transmitter
- 1 x Receiver
- 2 x 12V, 1.5A Power Supply
- 2 x DisplayPort cables M/M, 1.8m (6 ft.)
- 2 x USB Type A to B cables, M/M, 1.8m (6 ft.)
- 1 x 3.5mm audio cable, MM 3m (10 ft.)
- 2 x US Power Cords
Environmentally Friendly: Yes Environmental Certification: RoHS Country of Origin: United Kingdom TAA Compliant: Yes Warranty
Limited Warranty: 2 Year
